Dell Latitude E6540 - Installing the System Board

Installing the System Board

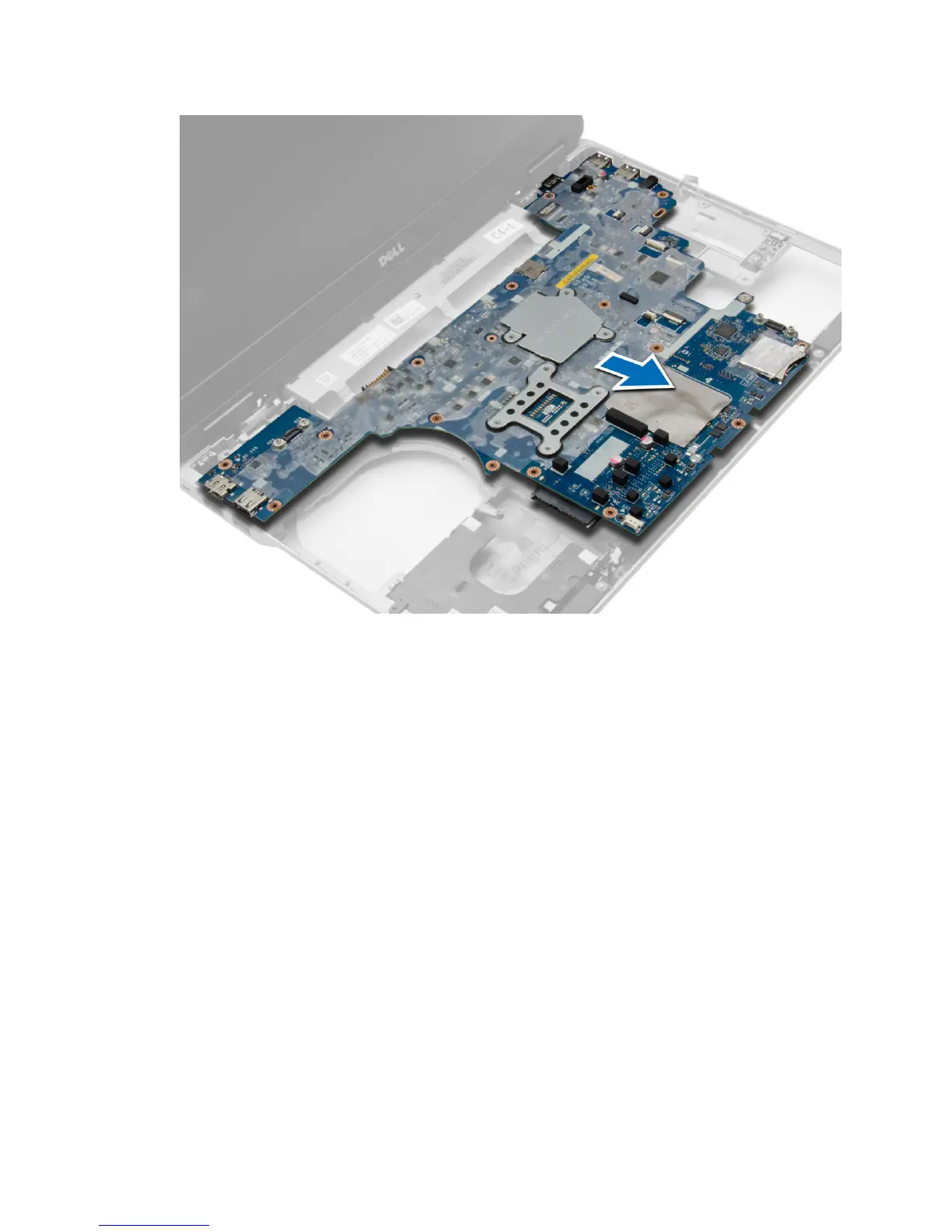

1. Place the system board to align with the ports on the computer.
2. Tighten the screws to secure the system board.
3. Connect the following cables to the system board:
a) speaker
b) WiFi-switch
4. Install:
a) ExpressCard cage
b) VGA board
c) palmrest assembly
d) processor
e) heat-sink assembly
f) WWAN
g) WLAN card
h) memory
i) coin-cell battery
j) power connector
k) base corner caps
l) base cover
m) display-hinge cap
