Dell Latitude E6540 - Installing the Speakers

Installing the Speakers

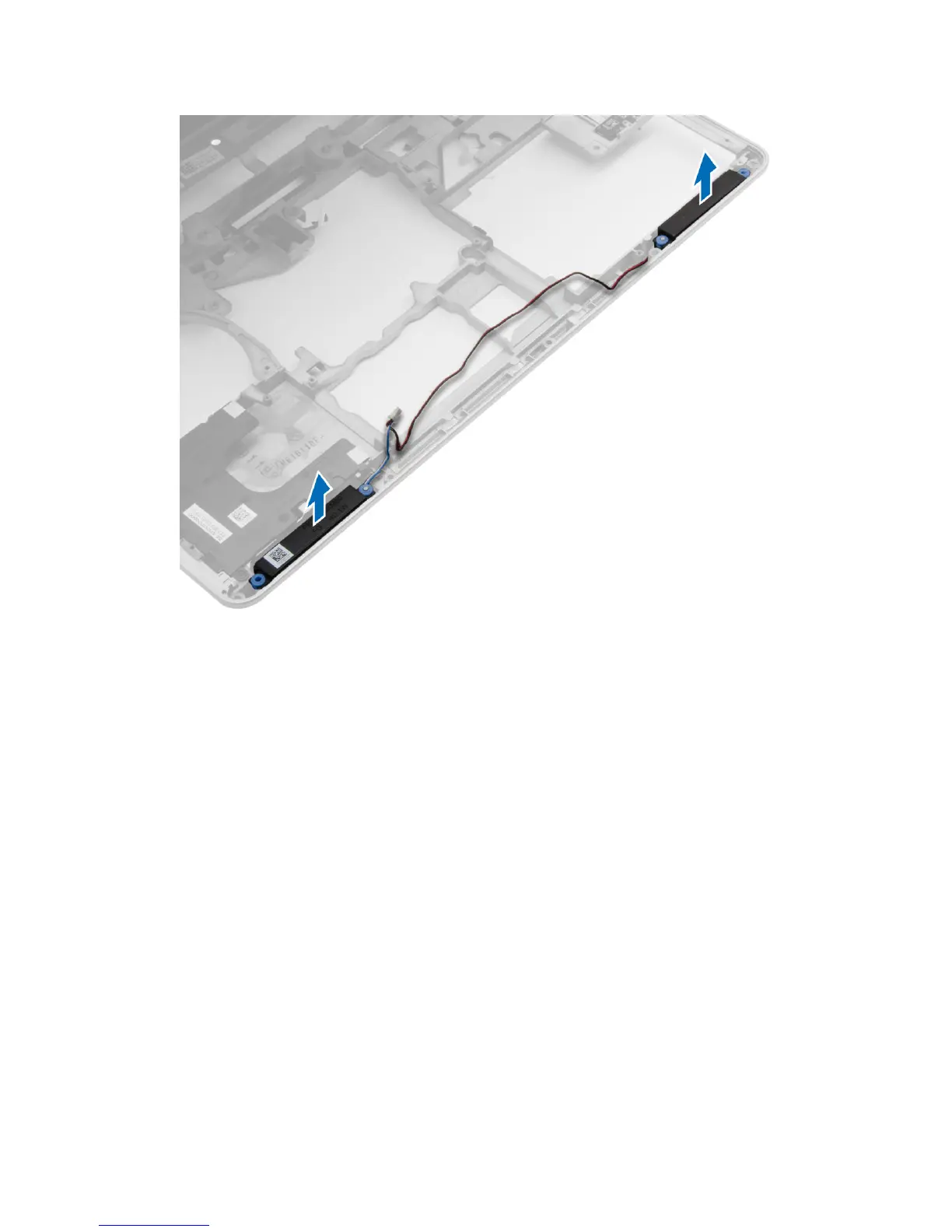

1. Align the speakers in its position on the computer and route the speaker cable in the routing channels on the
computer.
2. Tighten the screws to secure the speakers.
3. Install:
a) system board
b) ExpressCard cage
c) VGA board
d) processor
e) heat-sink assembly
f) WWAN card
g) WLAN card
h) memory
i) coin-cell battery
j) power connector
k) palmrest assembly
l) base corner caps
m) base cover
n) display-hinge cap
o) optical drive
