Installing the Palmrest Assembly

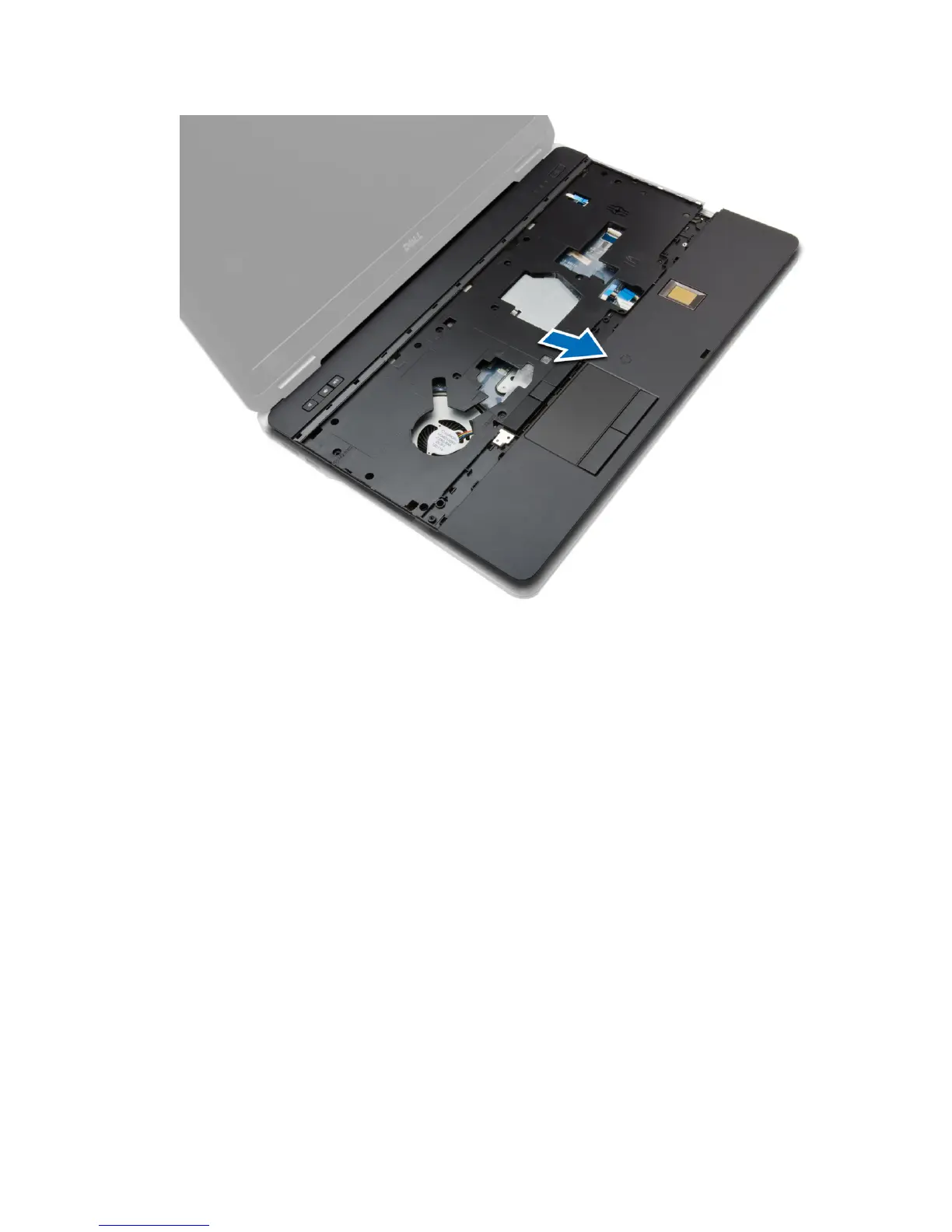

1. Align the palmrest assembly to its original position in the computer and snap it into place.
2. Tighten the screws to secure the palmrest assembly to the computer.
3. Connect the following cables:
a) power-button
b) touchpad
c) fingerprint-reader
4. Flip the computer and tighten the screws to secure the palmrest assembly to the base of the computer.
5. Install:
a) base corner caps
b) base cover
c) display-hinge cap
d) keyboard
e) battery
f) ExpressCard
g) SD card
6. Follow the procedures in
After Working Inside Your Computer
.
33
