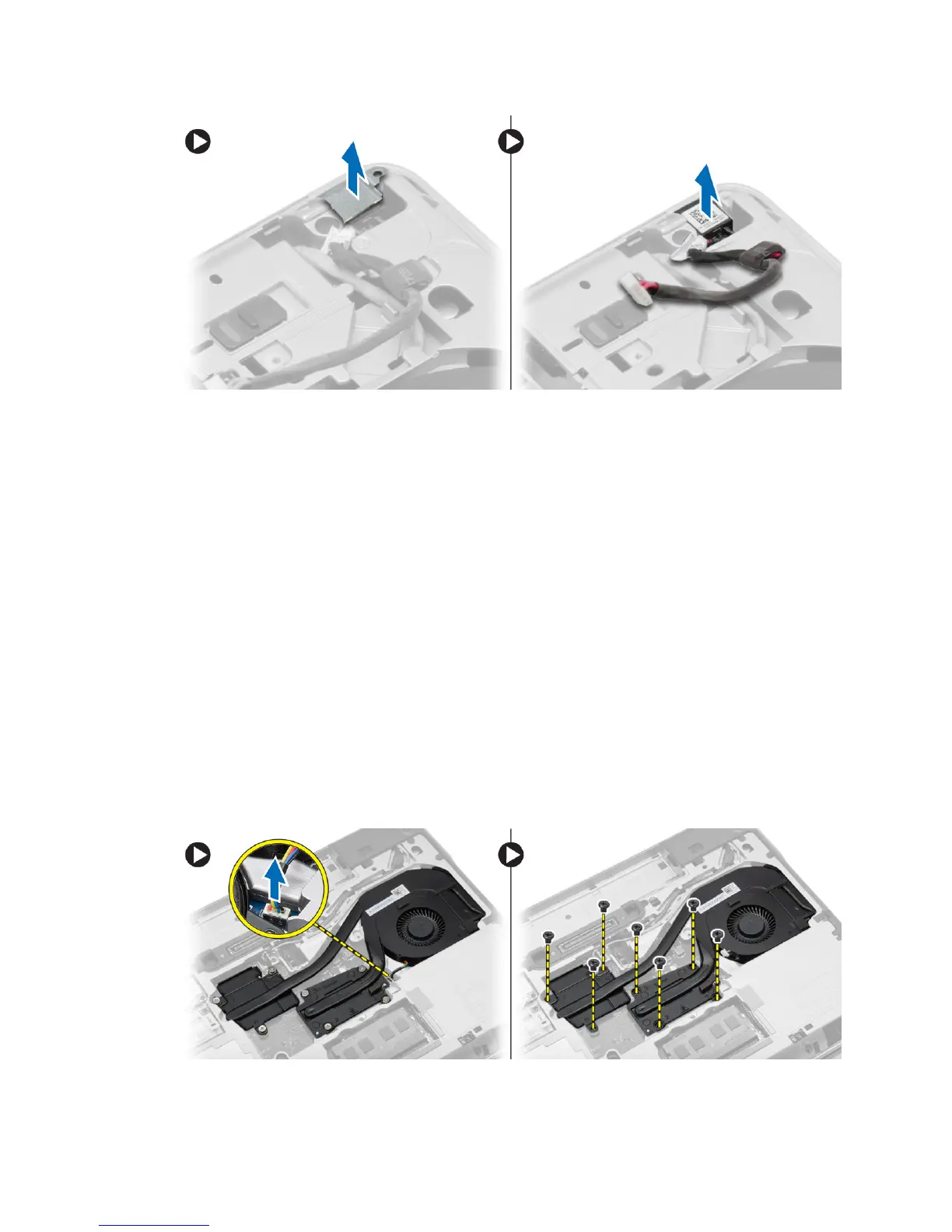

Installing the Power Connector
1. Align the power connector to its position in the computer.
2. Place the power-connector bracket on the power connector.
3. Tighten the screw to secure the power-connector bracket to the computer.
4. Route the cable through the routing channel.
5. Connect the cable to the system board.
6. Install:
a) base cover
b) base corner cap (right)
c) battery
7. Follow the procedures in
After Working Inside Your Computer
.
Removing the Heat-Sink Assembly
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove:
a) battery
b) base cover
3. Disconnect the fan cable and remove the screws that secure the heat-sink assembly to the system board.
