Dell Latitude E6540 - Installing the Display Hinges

e) display assembly
f) display bezel
g) display panel

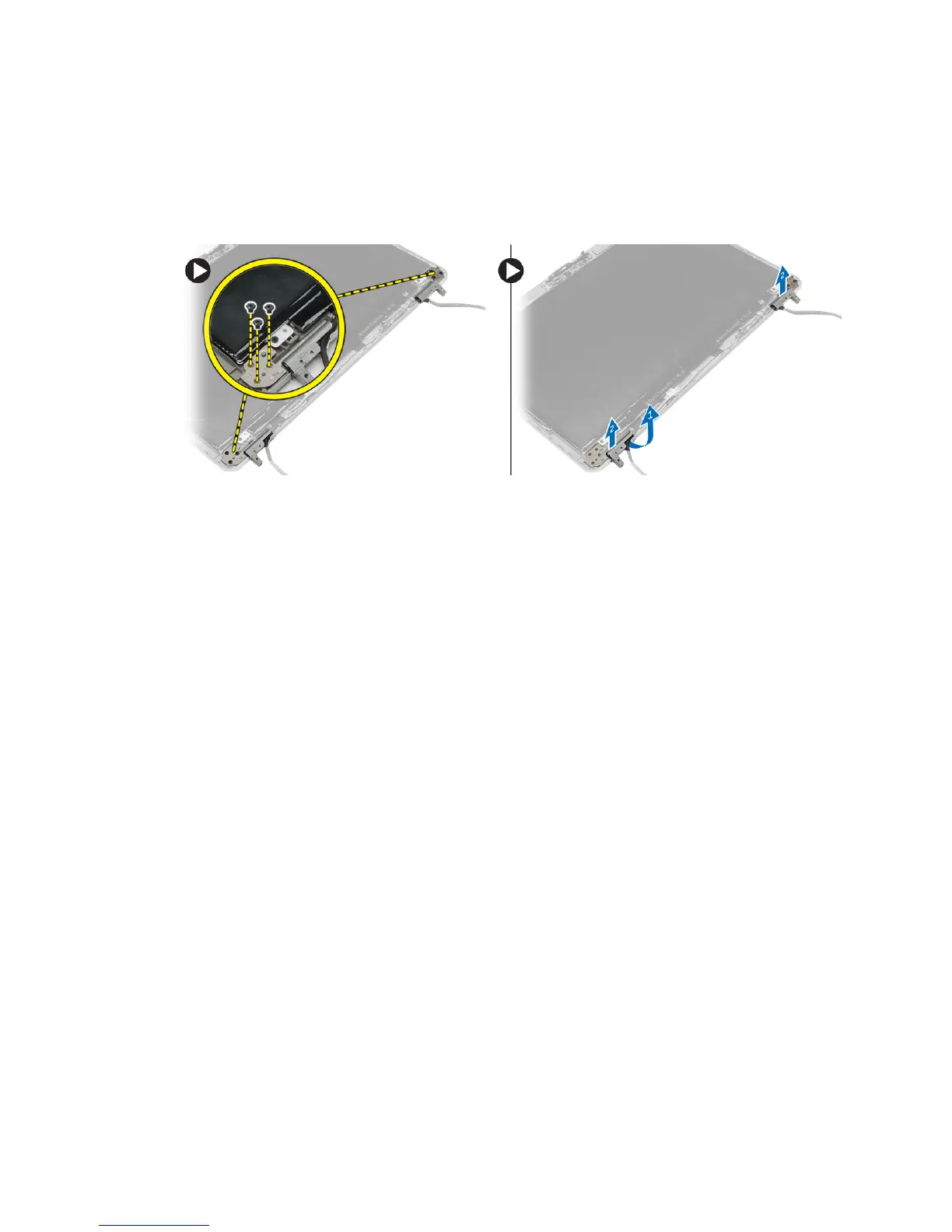

3. Perform the following steps as shown in the illustration:
a) Remove the screws that secure the display hinges to the display assembly.
b) Remove the display hinges from the computer.
Installing the Display Hinges
1. Place the display hinges in its location on the computer.
2. Tighten the screws to secure the display hinges to the display assembly.
3. Install:
a) display panel
b) display bezel
c) display assembly
d) base corner caps
e) base cover
f) display-hinge cap
g) battery
4. Follow the procedures in After Working Inside Your Computer .
Removing the Camera
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) display assembly
c) display bezel
3. Perform the following steps as shown in the illustration:
a) Disconnect the camera cable.
b) Remove the screw that secures the camera module.
c) Lift the camera module from the computer.
