Dell OptiPlex 360 - Page 109

Power Supply 109

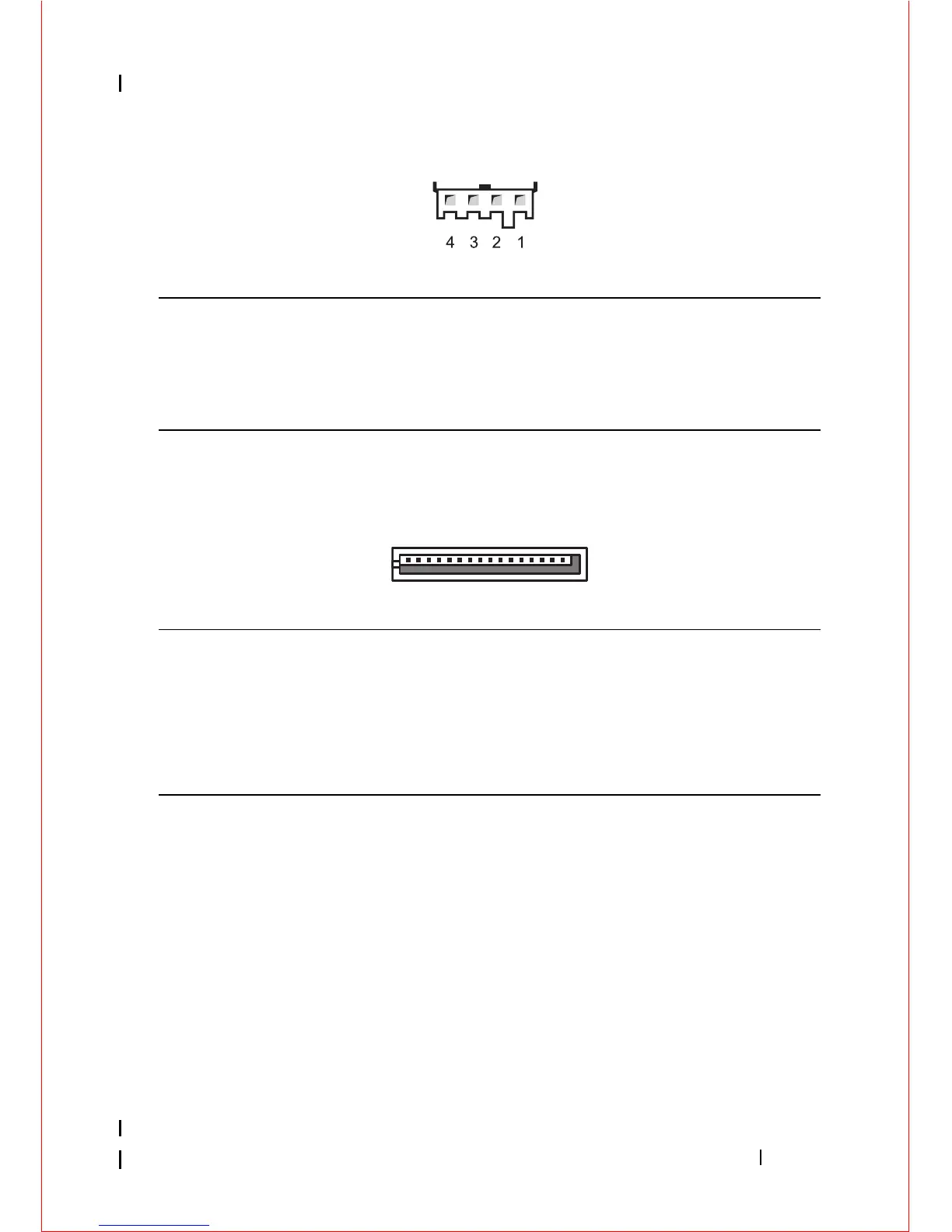

P7: Floppy Disk Drive Connector — Mini Tower Computer
P8 and P9: Right Angle SATA Connectors — Mini Tower Computer
Pin Number Signal Name Wire Color Wire Gauge
1 +5 VDC Red AWG#22
2 COM Black AWG#22
3 COM Black AWG#22
4 +12 VADC Yellow AWG#22
Pin Number Signal Name Wire Color Wire Gauge
1 +3.3 VDC Orange AWG#18
2 COM Black AWG#18
3 +5 VDC Red AWG#18
4 COM Black AWG#18
5 +12 VADC Yellow AWG#18
543
21
