52 Cards
b
Ensure that the riser-card connectors are fully seated in the connectors
on the system board.
c
Rotate the riser-card cage handle to the down position.
Installing or Replacing a Card in the Optional
Riser-Card Cage
NOTE: The riser-card cage is an option for the desktop computer only.
1
Follow the procedure in "Before Working on Your Computer" on page 9.
2
Remove the computer cover (see "Removing the Desktop Computer
Cover" on page 21).
3
Remove the riser-card cage:
a
Disconnect any cables connected to cards through the back panel
openings.
b
Rotate the riser-card cage handle up and gently pull on the handle to
lift the riser-card cage up and away from the computer.

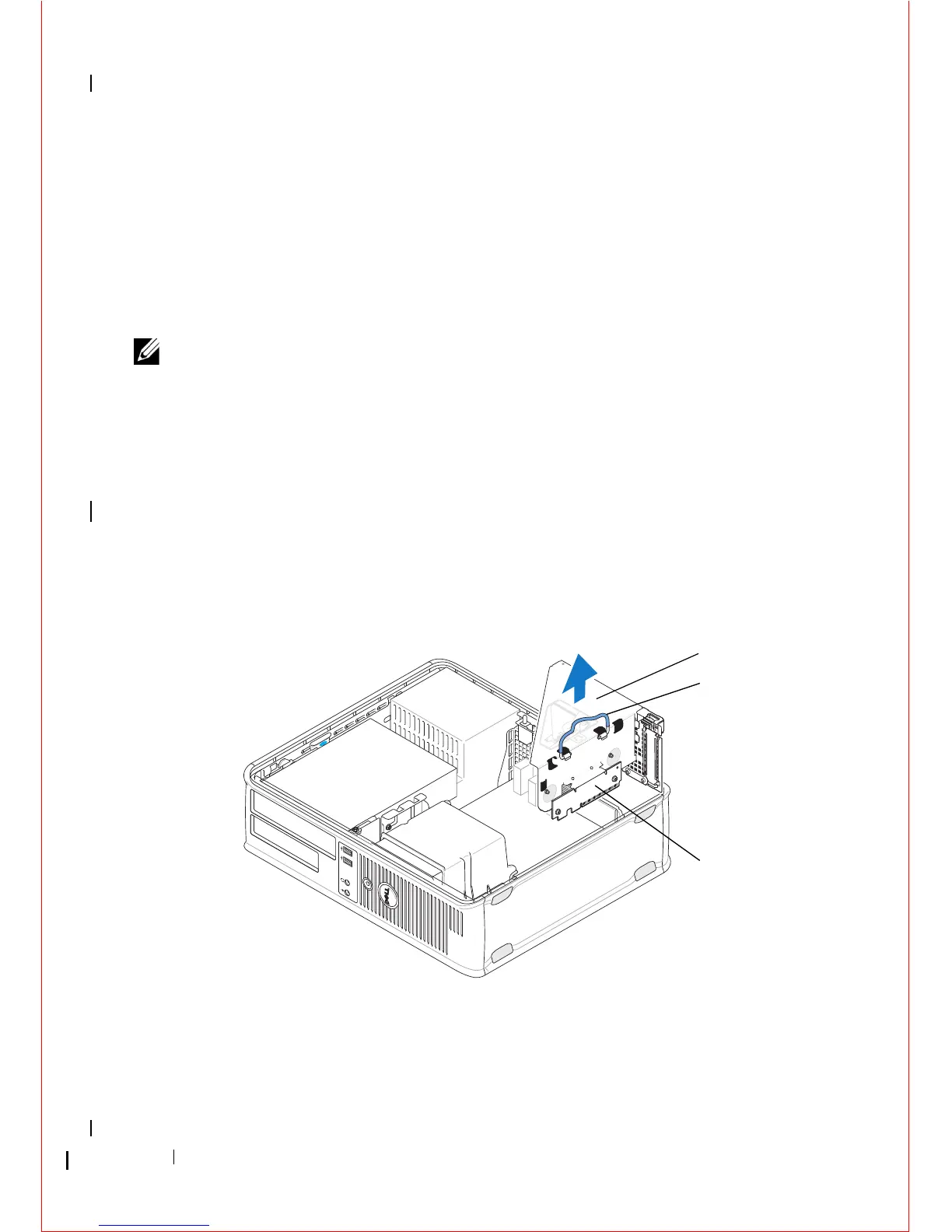

1 riser-card cage 2 handle
3 riser cards (2)
