46 Cards
Removing a PS/2 Serial-Port Adapter From a Desktop Computer
NOTE: If applicable, see "Removing a Card From the Optional Riser-Card Cage" on
page 50.
1
Follow the procedure in "Before Working on Your Computer" on page 9.
2
Remove the computer cover (see "Removing the Desktop Computer
Cover" on page 21).
3
Gently lift the release lever on the card retention latch to pivot the latch
open. The latch remains in the open position.
4
Disconnect the PS/2 serial-port cable from the system board (see "Desktop
Computer System Board Components" on page 15).
5
Ease the PS/2 serial-port adapter bracket out of its slot.
6
If you are removing the adapter permanently, install a filler bracket in the
empty card-slot opening.

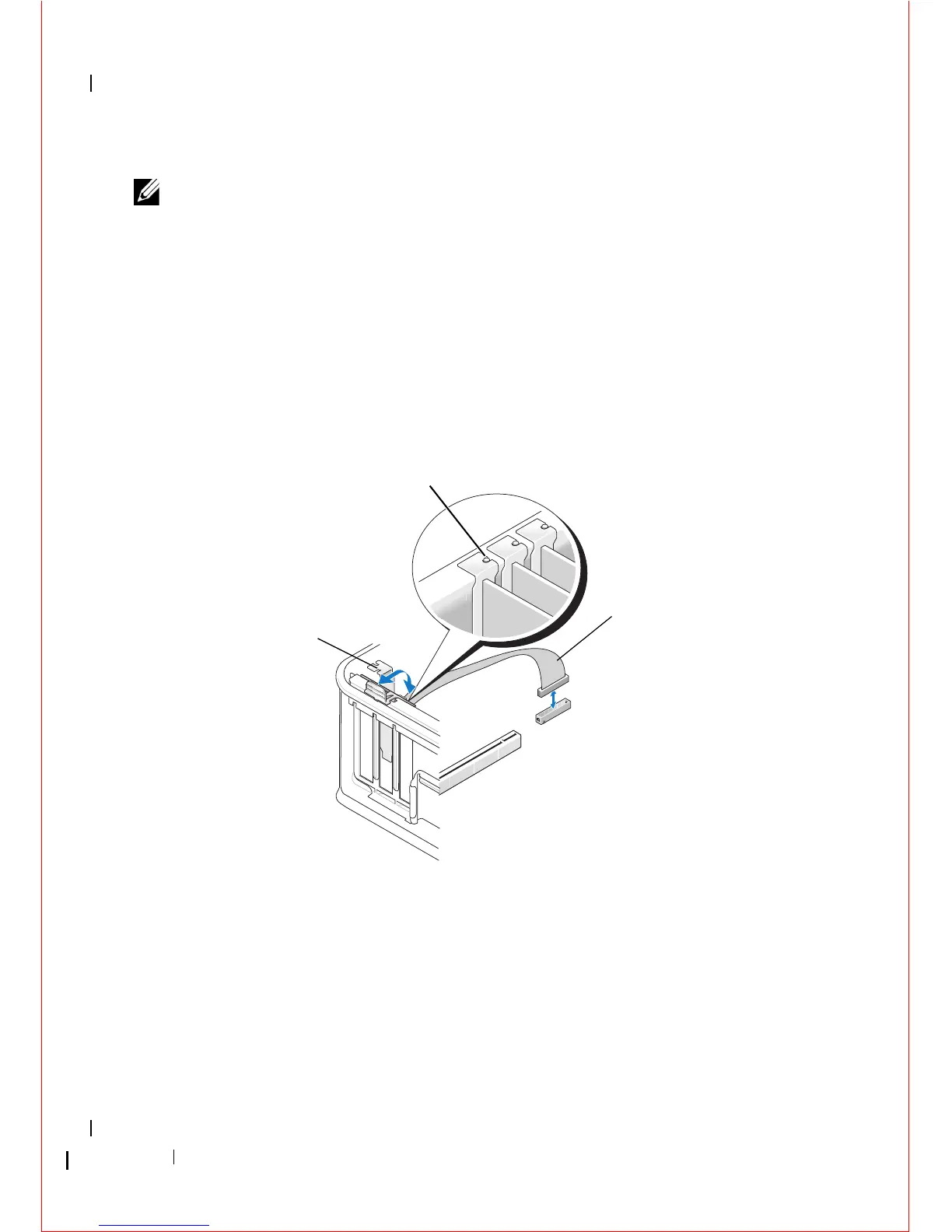

1 card retention latch 2 alignment guide
3 PS/2 serial adapter cable
