1102 Configuring DHCPv6 Server and Relay Settings

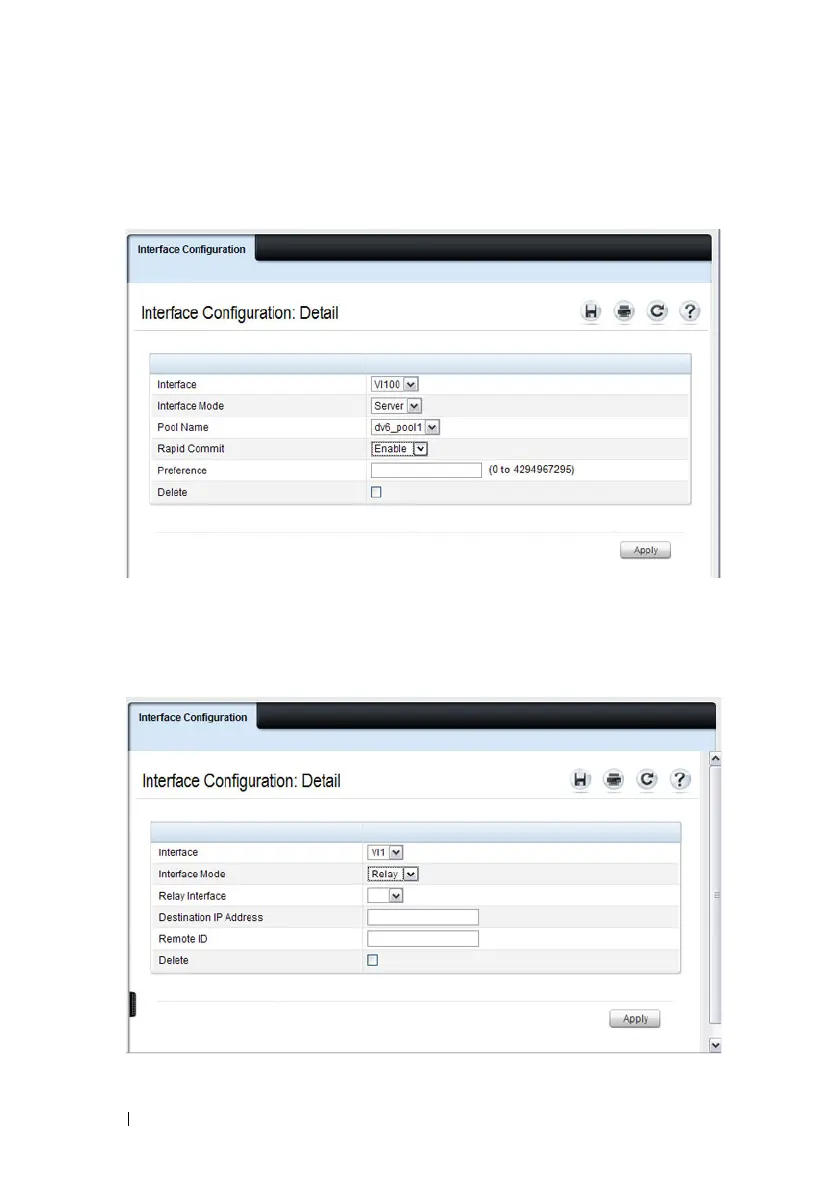

Figure 39-8 shows the screen when the selected interface mode is Server.

Figure 39-8. DHCPv6 Interface Configuration - Server Mode

Figure 39-9 shows the screen when the selected interface mode is Relay.

Figure 39-9. DHCPv6 Interface Configuration - Relay Mode
