Configuring VLANs 607
5.
Configure LAG 1 to be in general mode and specify that the LAG will
accept tagged or untagged frames, but that untagged frames will be
transmitted tagged with PVID 400.
a.
From the
Switching
→
VLAN
→
LAG Settings page, make sure Po1
is selected.
b.
Configure the following settings:
•Port VLAN Mode — General
•PVID — 400
• Frame Type — AdmitAll
c.
Click
Apply
.

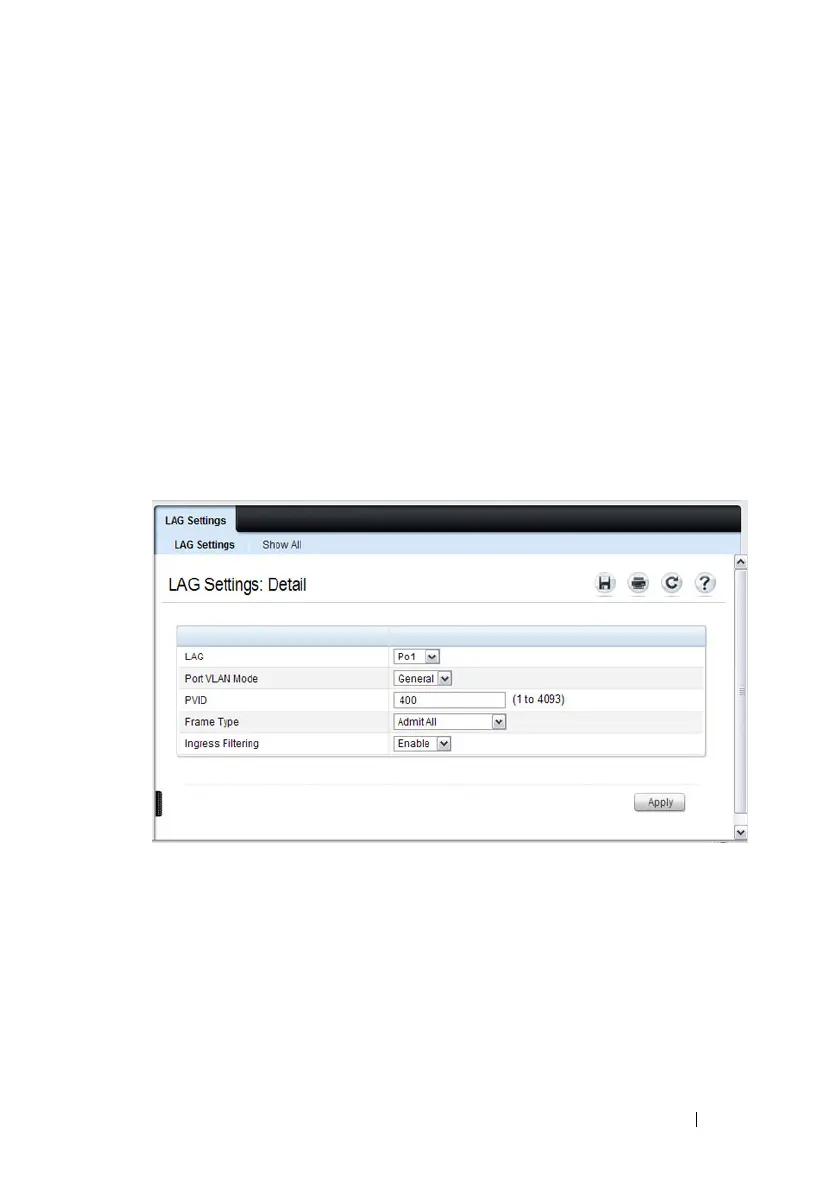

Figure 22-29. LAG Settings
6
Configure port 1 as a trunk port.
a
From the
Switching
→
VLAN
→
Port Settings page, make sure port
Te1/0/1 i
s selected.
b
From the
Port VLAN Mode
field, select Trunk.
c
Click
Apply
.
