608 Configuring VLANs

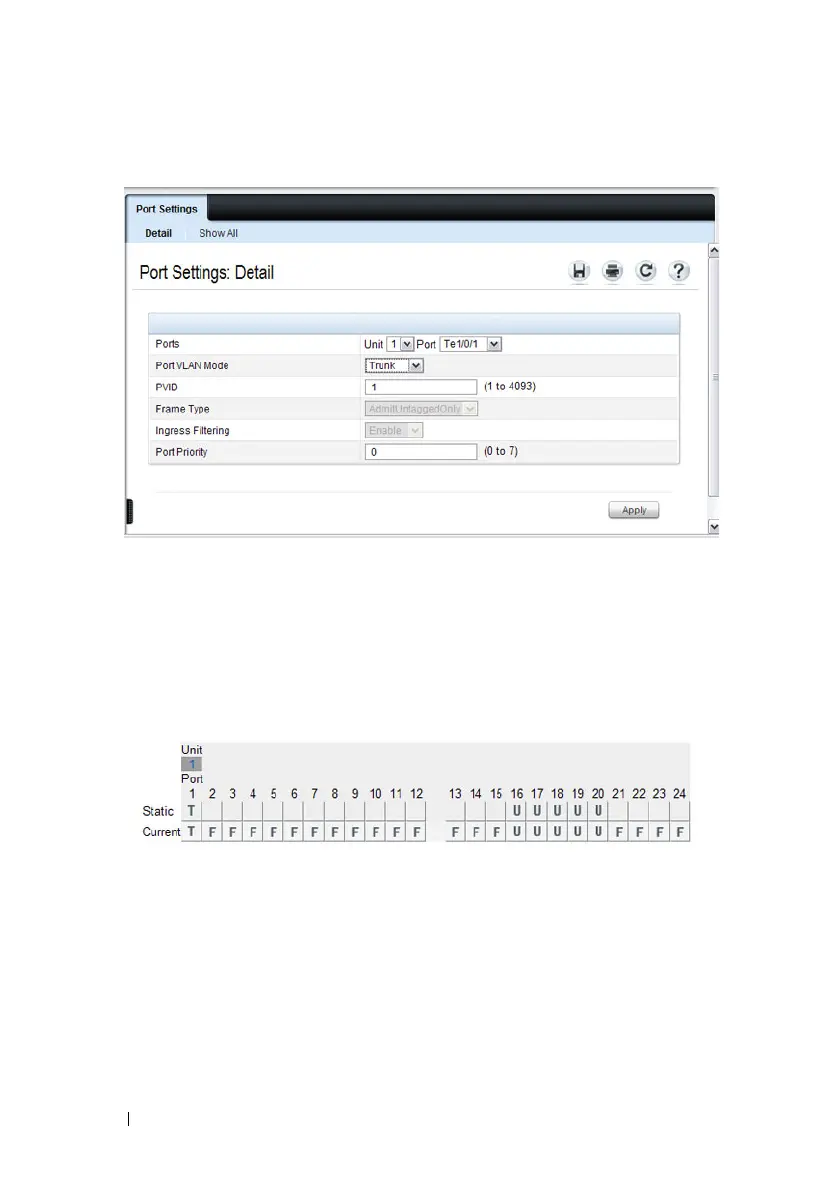

Figure 22-30. Trunk Port Configuration
7
From the
Switching
→
VLAN
→
VLAN Membership page, verify that
port 1 is marked as a tagged member (T) for each VLAN.
Figure 22-31 shows VLAN 200, in which port 1 is a tagged member, and
ports 16–20 are untagged members.
Figure 22-31. Trunk Port Configuration
8
Configure the MAC-based VLAN information.
a
Go to the
Switching
→
VLAN
→
Bind MAC to VLAN page.
b
In the
MAC Address
field, enter a valid MAC address, for example
00:1C:23:55:E9:8B.
c
In the
Bind to VLAN
field, enter 300, which is the Sales VLAN ID.
d
Click
Apply
.
