Configuring DHCP Server Settings 879
In Figure 32-7, the Static pool name is Lab, and the name of the client in
the pool is LabHost1. The client’s MAC address is mapped to the IP
address 192.168.11.54, the default gateway is 192.168.11.1, and the DNS
servers the client will use have IP addresses of 192.168.5.100 and
192.168.2.5.

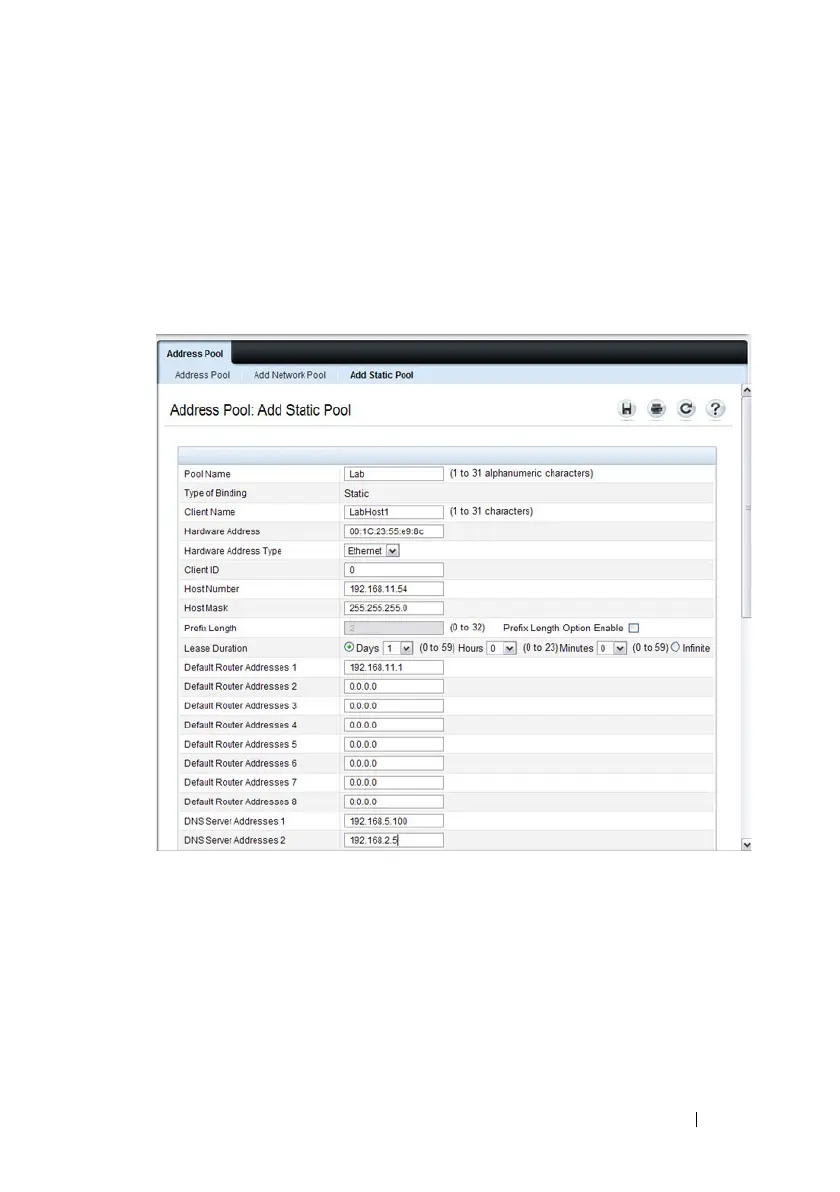

Figure 32-7. Add Static Pool
4
Click
Apply
.
