Dell PowerSwitch N3200-ON Series - Page 11

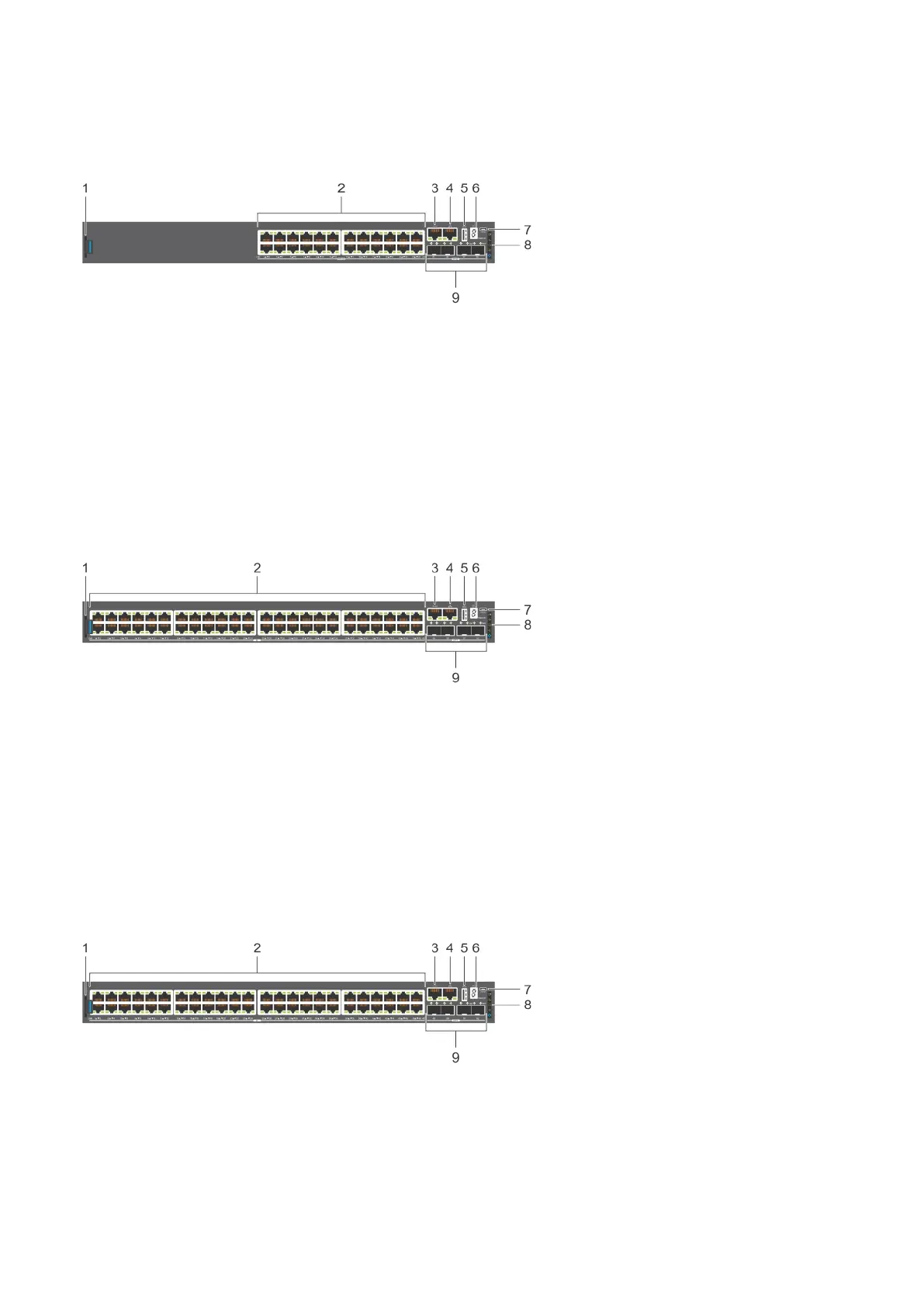

N3224PX-ON I/O-side view
1. Luggage tag 2. 10GBASE-T RJ45 with 802.3bt Type-4 (90 W) PoE
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. Micro-USB Type-B port 8. Status LEDs
9. 10G SFP28 ports
N3248TE-ON I/O-side view
1. Luggage tag 2. 1GBASE-T RJ45
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. Micro-USB Type-B port 8. Status LEDs
9. 10G SFP28 ports
N3248P-ON/E3248P-ON I/O-side view
1.
Luggage tag 2. 1GBASE-T RJ45 with 802.3at Type-2 (30 W) PoE
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
N3200-ON/E3200-ON Series switch 11
