7. Micro-USB Type-B port 8. Status LEDs
9. 10G SFP+ ports

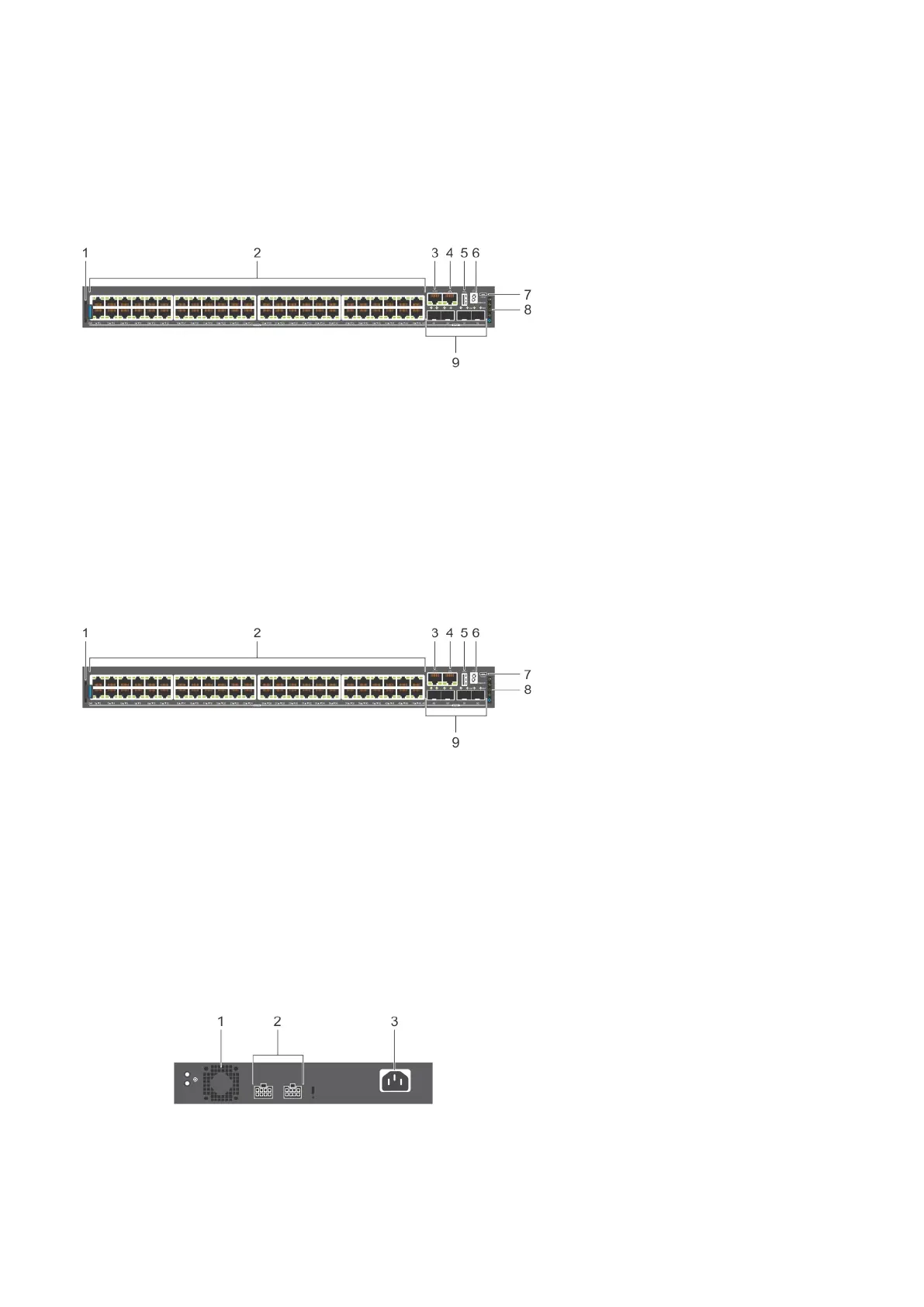

N3248X-ON I/O-side view
1. Luggage tag 2. 10GBASE-T RJ45
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. Micro-USB Type-B port 8. Status LEDs
9. 10G SFP28 ports
N3248PXE-ON/E3248PXE-ON I/O-side view
1.
Luggage tag 2. 10GBASE-T RJ45 with 802.3bt Type-4 (90 W) PoE
3. RJ45 serial management port 4. RJ45 Ethernet console port
5. USB Type-A port 6. Stack ID
7. Micro-USB Type-B port 8. Status LEDs
9. 10G SFP28 ports
N3200-ON/E3200-ON Series PSU-side views:
N3208PX-ON PSU-side view
1. Fan
12
N3200-ON/E3200-ON Series switch
