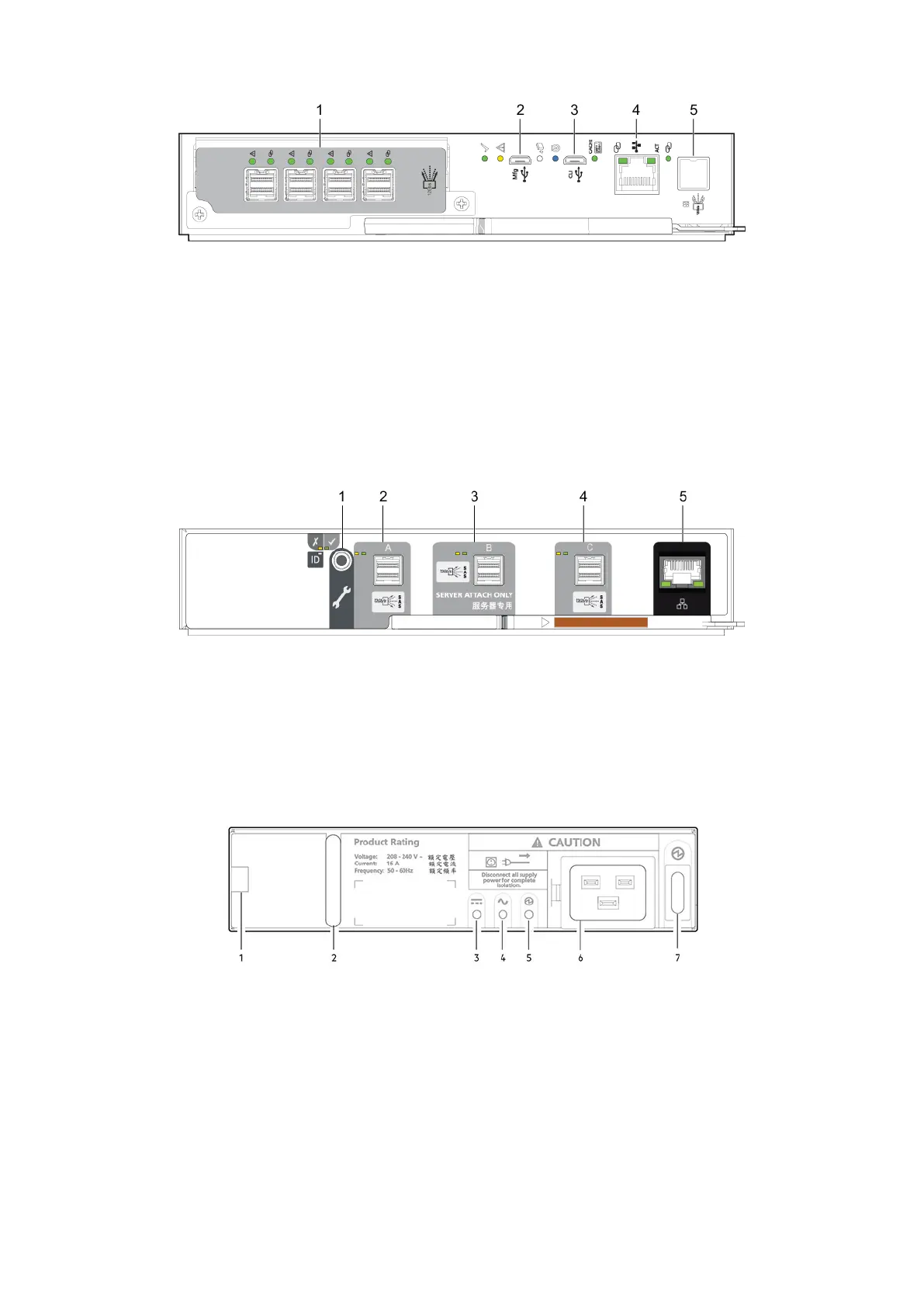

Figure 18. Controller module details
1. Host ports 2. USB serial port (service only)
3. USB serial port (CLI) 4. Ethernet port for management network
5. SAS expansion port
Expansion module
The 5U84 expansion enclosure uses the same IOMs that are used by 2U12 and 2U24 enclosures.
The following figure shows the IOM used in supported expansion enclosures for adding storage. Ports A/B/C ship configured
with 12 Gb/s mini-SAS HD (SFF-8644) external connectors. See I/O Module LEDs for information about indicators on the
enclosure.
Figure 19. Expansion enclosure IOM details
1.
3.5 mm serial port (service only) 2. SAS expansion port A
3. SAS expansion port B (disabled) 4. SAS expansion port C
5. Ethernet port (disabled)
Power supply module
This figure shows the power supply unit that is used in 5U controller enclosures and optional 5U84 expansion enclosures.
Figure 20. Power supply unit (PSU)
1.
Module release latch 2. Handle
3. PSU Fault LED (Amber/blinking amber) 4. AC Fail LED (Amber/blinking amber)
5. Power OK LED (Green) 6. Power connect
7. Power switch
LED behavior:
● If any of the PSU LEDs are illuminated amber, a module fault condition or failure has occurred.
● For a detailed description of PSU LEDs, see ME5084 LEDs.
Storage system hardware
17
