Steps

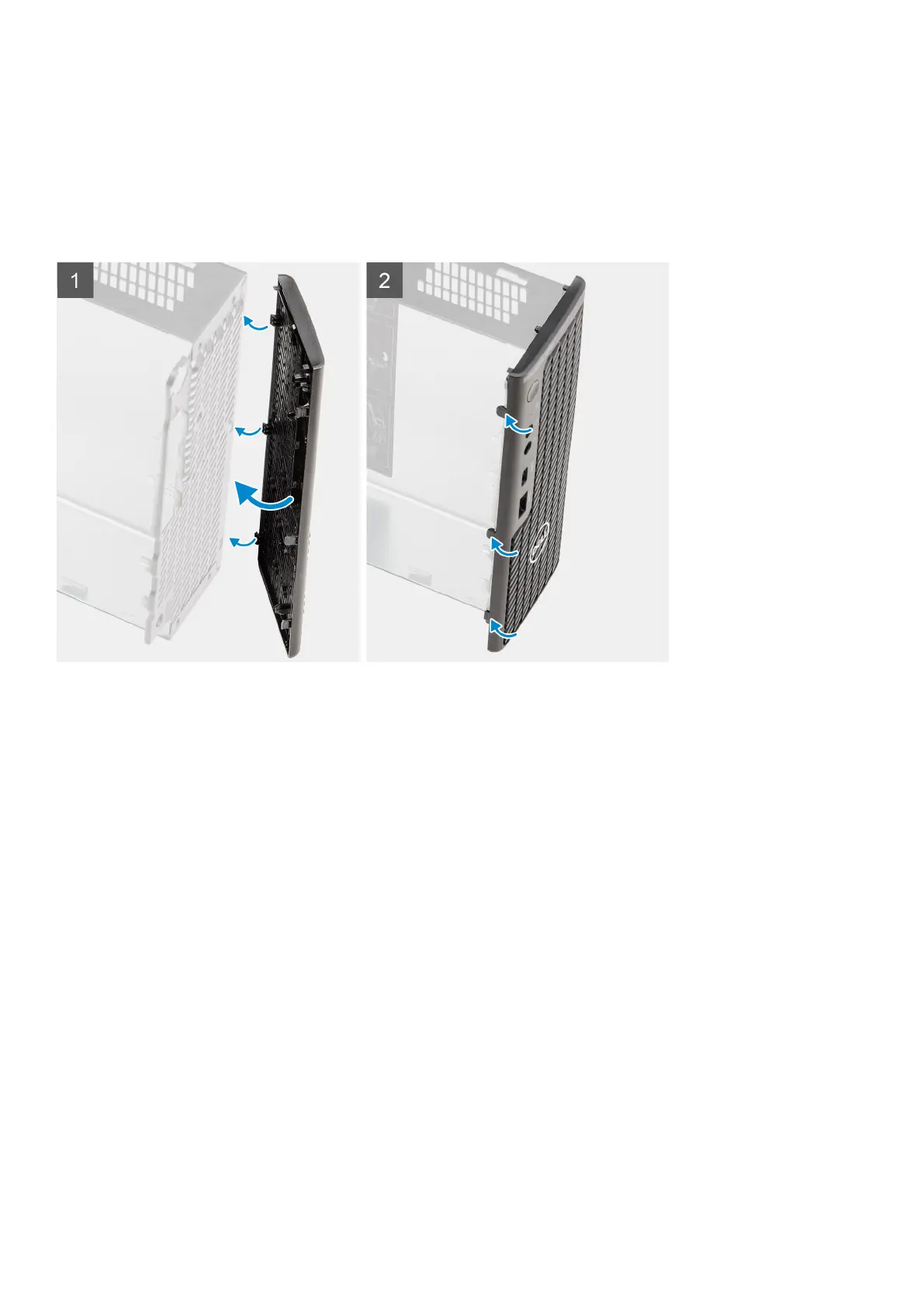

1. Position the bezel to align the tabs with the slots on the chassis.
2. Press the bezel until the release tabs click into place.
Next steps
1. Install the side cover.
2. Install the top cover (side bezel).
3. Follow the procedure in after working inside your computer.
Hard-drive assembly
Removing the hard drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the top cover (side bezel).
4. Remove the front bezel.
About this task
The following images indicate the location of the hard drive assembly and provide a visual representation of the removal
procedure.
Disassembly and reassembly
31
