2. Install the front bezel.
3. Install the top cover (side bezel).
4. Install the side cover.
5. Follow the procedure in after working inside your computer.
Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the top cover (side bezel).
4. Remove the front bezel.
About this task

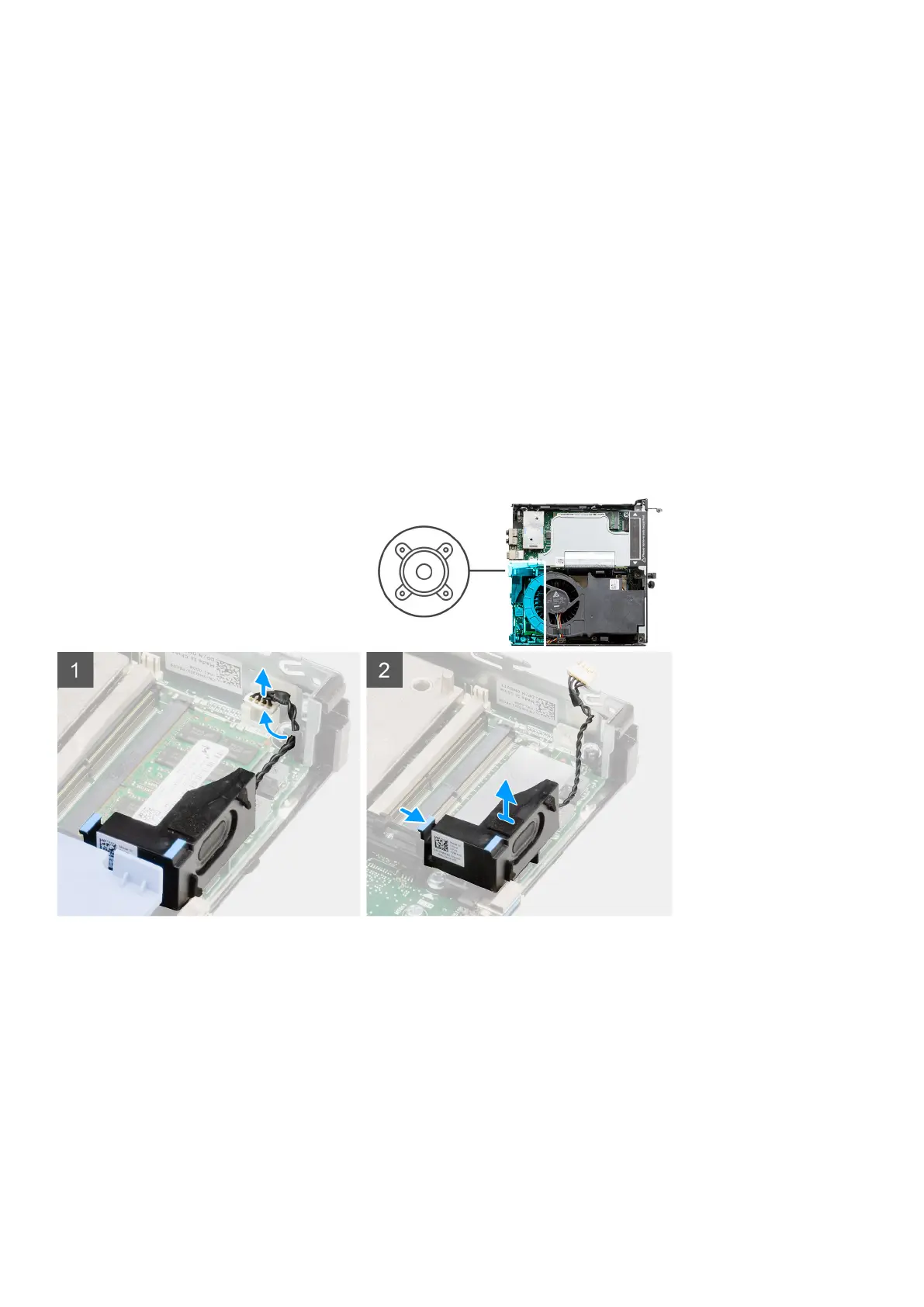

The following images indicate the location of the speaker and provide a visual representation of the removal procedure.
Steps
1. Disconnect the speaker cable from the system board.
2. Press the release tab and lift the speaker along with the cable from the system board.
Installing the speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
38
Disassembly and reassembly
