Installing the system fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

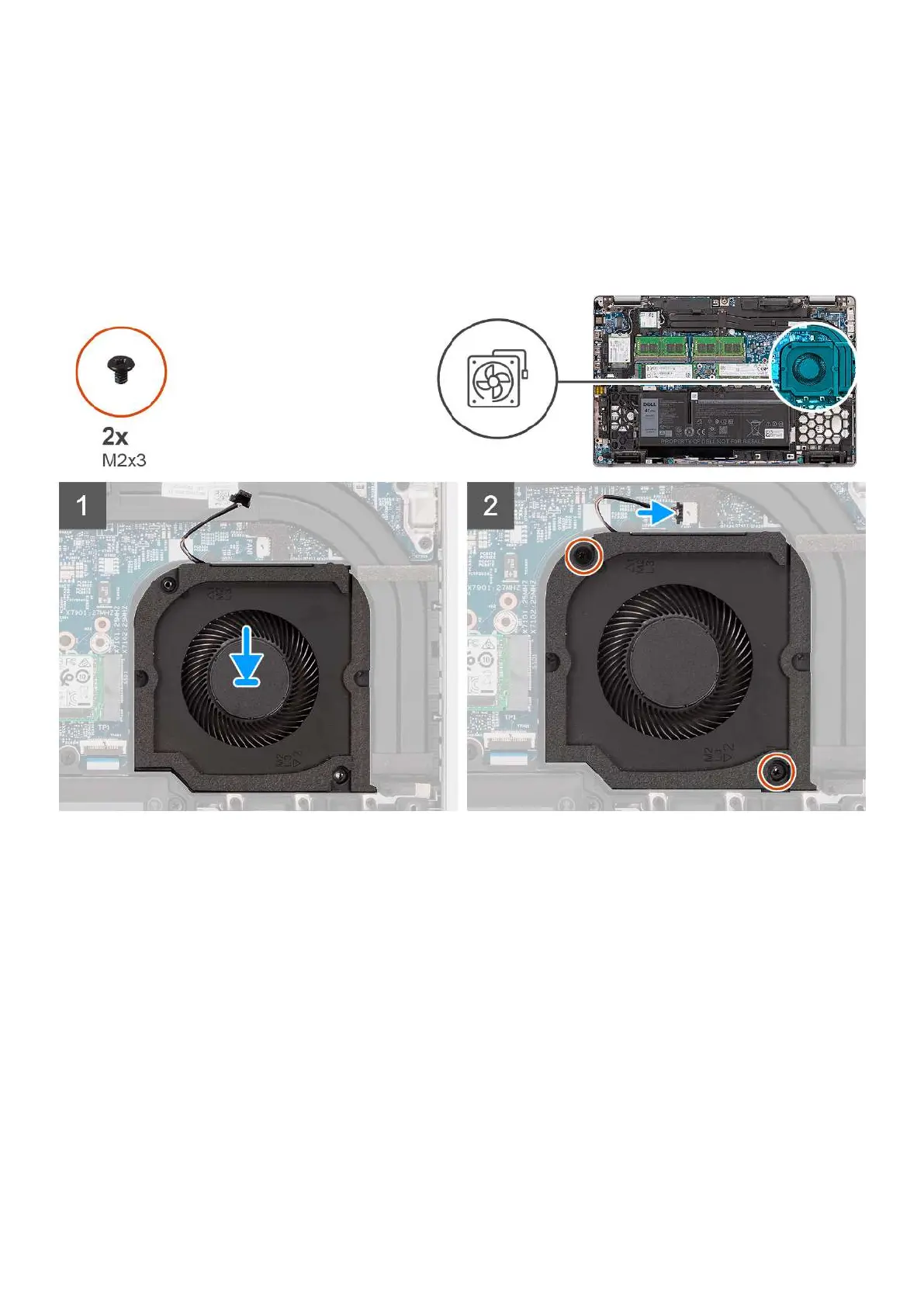

The following image indicates the location of the system fan and provide a visual representation of the installation procedure.
Steps
1. Align the screw holes on the system fan with the screw holes on the palm-rest assembly.
2. Replace the two (M2x3) screws to secure the system fan to the palm-rest assembly.
3. Connect the system-fan cable to the connector on the system board.
Next steps
1. Install the 3-cell battery or 4-cell battery.
2. Install the base cover.
3. Install the microSD card.
4. Install the SIM card.
5. Follow the procedure in after working inside your computer.
