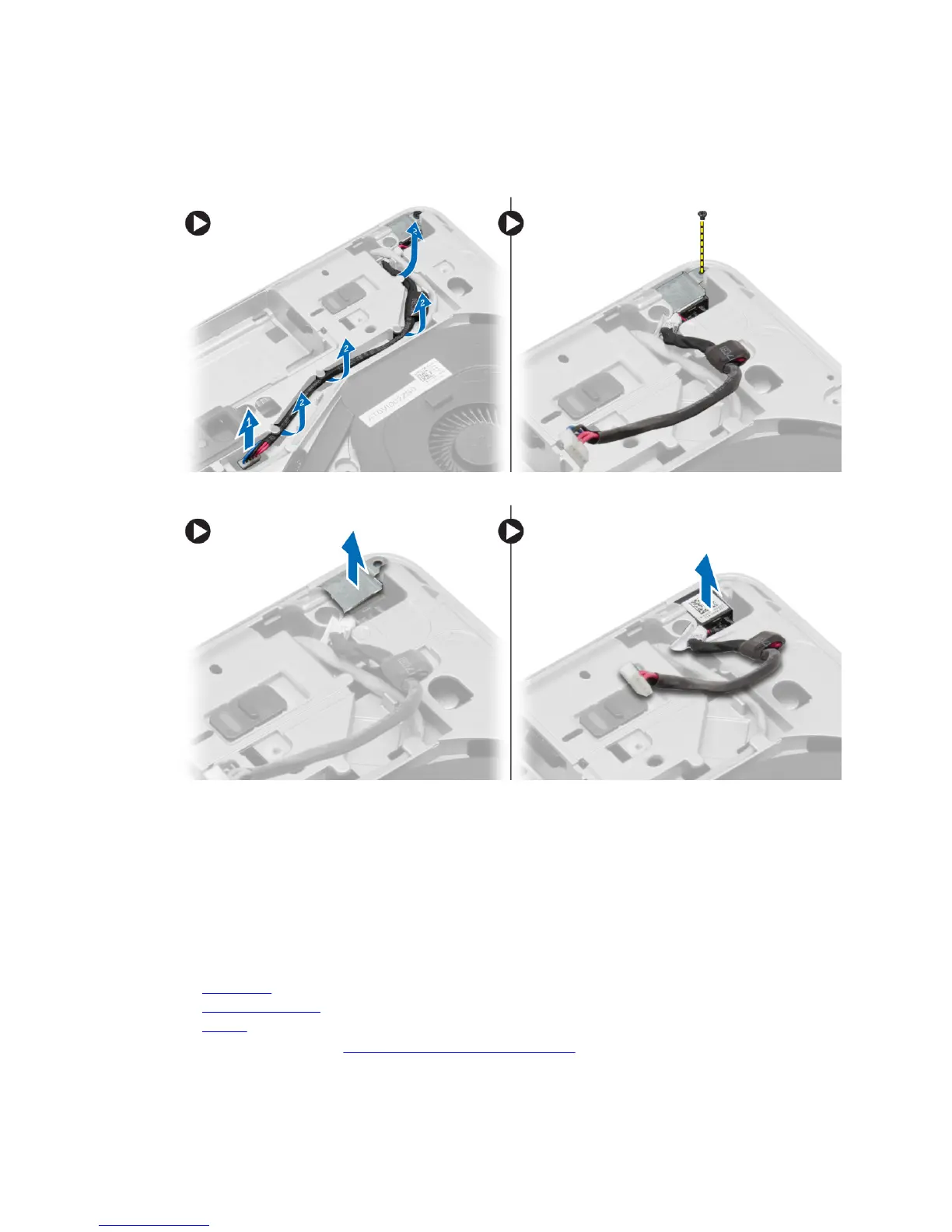

3. Perform the following steps as shown in the illustration:
a. Disconnect the power-connector cable from the system board.
b. Release the power-connector cable from the routing channel.
c. Remove the screw that secures the power-connector bracket to the computer.
4. Lift the power-connector bracket from the computer. Lift the power connector from the computer.
Installing the Power Connector
1. Align the power connector to its position in the computer.
2. Place the power-connector bracket on the power connector.
3. Tighten the screw to secure the power-connector bracket to the computer.
4. Route the cable through the routing channel.
5. Connect the cable to the system board.
6. Install:
a. base cover
b. base-corner cover (right)
c. battery
7. Follow the procedures in After Working Inside Your Computer.
