Removing the WiFi-Switch Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a. SD card
b. ExpressCard
c. battery
d. keyboard
e. display-hinge cap
f. base cover
g. base-corner covers
h. palmrest assembly

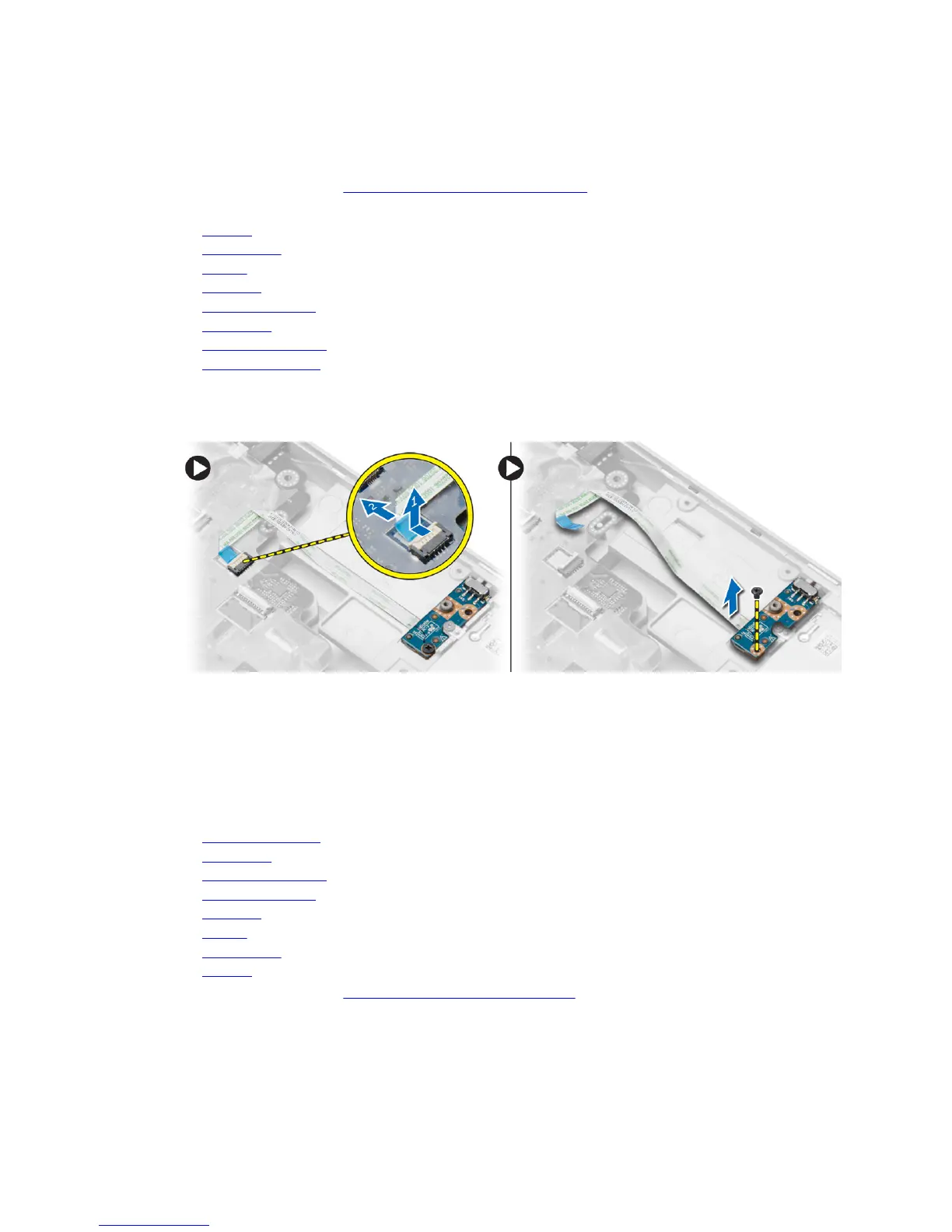

3. Perform the following steps as shown in the illustration:
a. Disconnect the cable from the system board.
b. Remove the screw that secures the WiFi-switch board and lift it from the computer.
Installing the WiFi-Switch Board
1. Place the WiFi-switch board in its slot.
2. Tighten the screw to secure the WiFi-switch board to the computer.
3. Connect the cable to the system board.
4. Install:
a. palmrest assembly
b. base cover
c. base-corner covers
d. display-hinge cap
e. keyboard
f. battery
g. ExpressCard
h. SD card
5. Follow the procedures in After Working Inside Your Computer.
