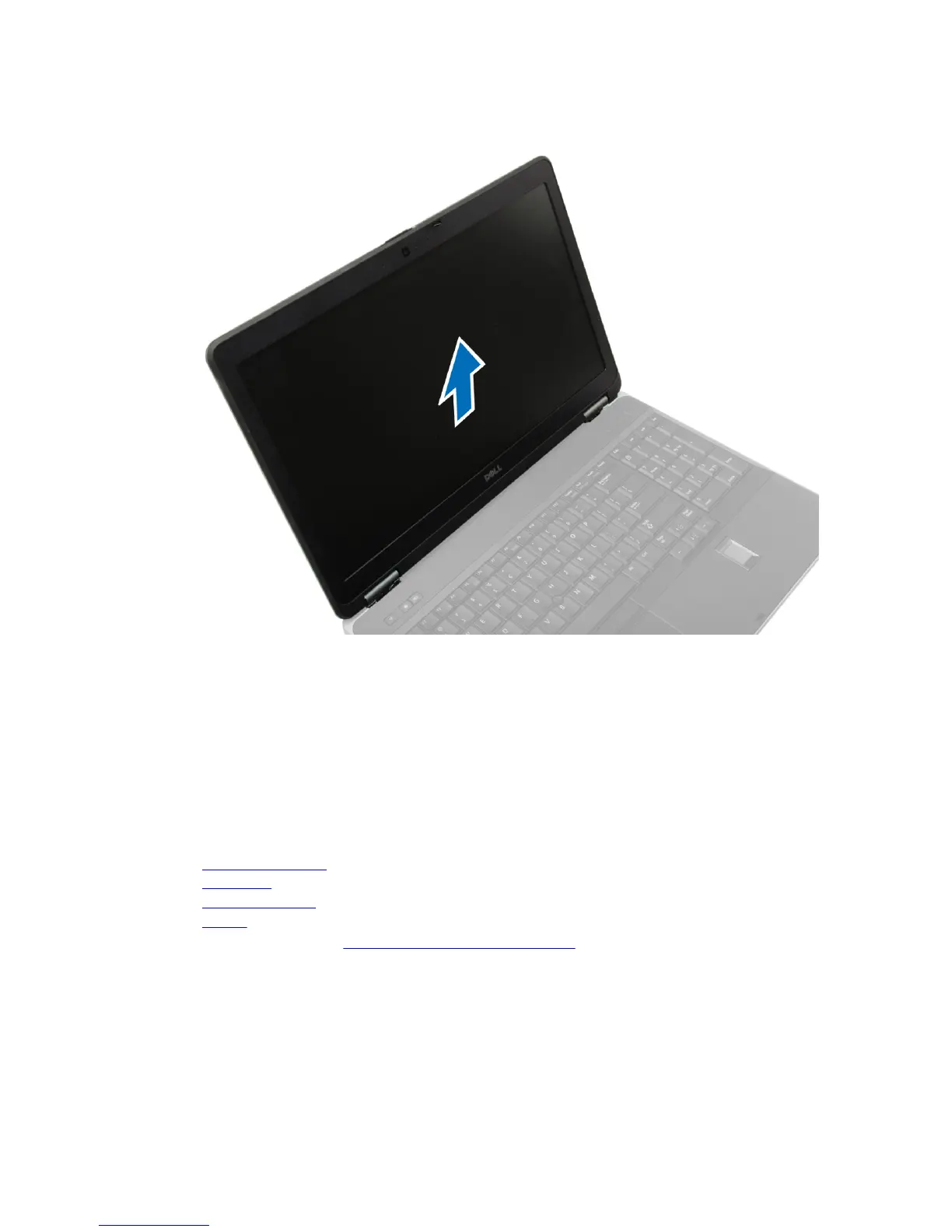

6. Remove the display assembly from the computer.
Installing the Display Assembly
1. Place the display assembly in its position on the computer.
2. Tighten the screws to secure the display assembly.
3. Route the LVDS cable and the camera cable through the routing channel.
4. Route the antenna cables through the routing channel.
5. Connect the antenna cables to the WLAN card on the computer.
6. Connect the camera cable to the computer.
7. Install:
a. base-corner covers
b. base cover
c. display-hinge cap
d. battery
8. Follow the procedures in After Working Inside Your Computer.
48
