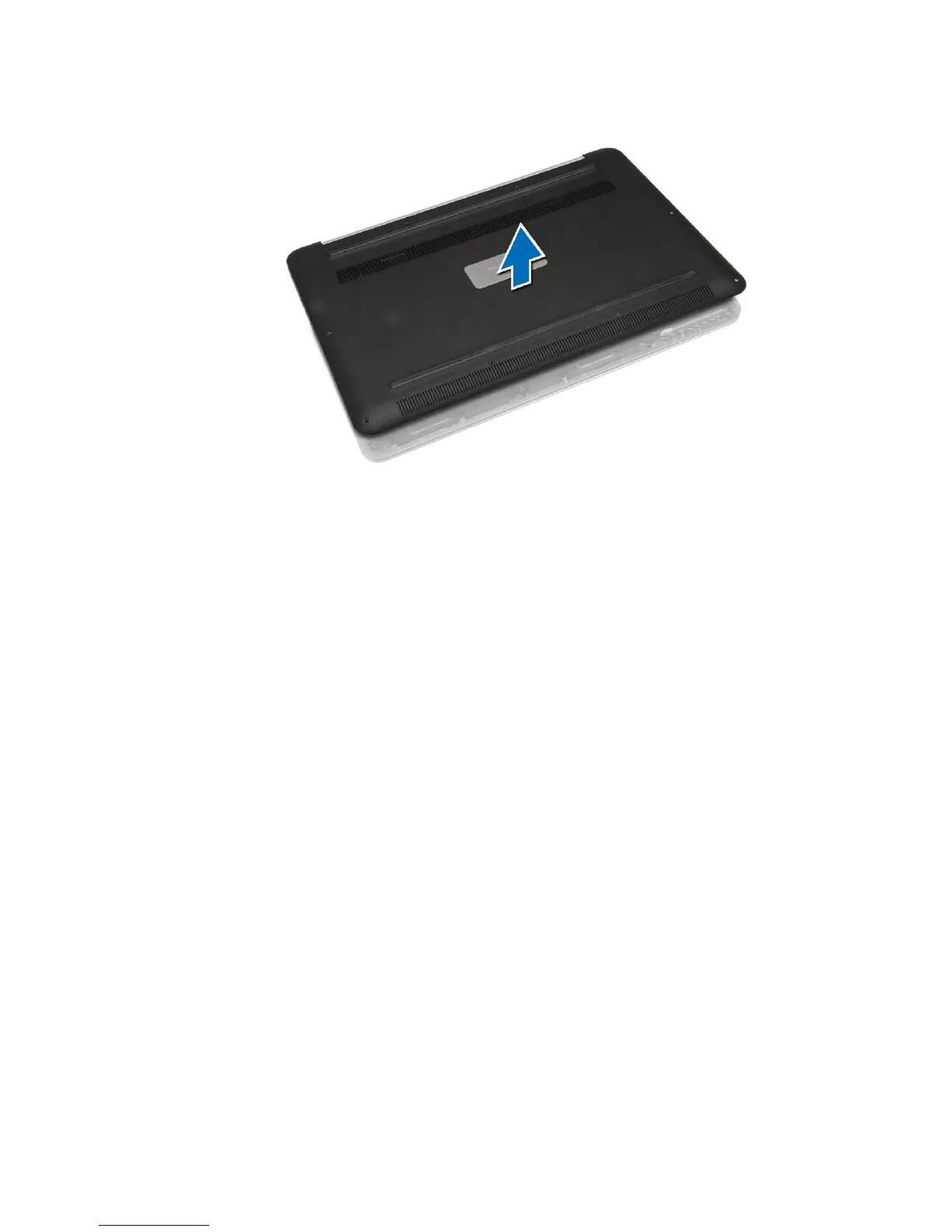

5. Lift up and remove the base cover from the palmrest assembly.
Installing the Base Cover
1. Place the base-cover assembly on the palmrest assembly and snap it into place.
2. Tighten the screws to secure the base cover to the computer.
3. Turn the system badge over and snap it in place.
4. Follow the procedures in
After Working Inside Your Computer
.
Removing the System Badge
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the base cover.
3. Peel the Mylar tape that secures the system badge to the base cover.
11
