a) battery
b) base cover
6. Follow the procedures in
After Working Inside Your Computer.
Removing the Palmrest Assembly
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the:
a) base cover
b) battery
c) hard drive
d) speakers
e) WLAN card
f) coin-cell battery
g) mSATA card
h) fans
i) heatsink
j) power-adapter port
k) I/O board
l) memory modules
m) system board
n) keyboard

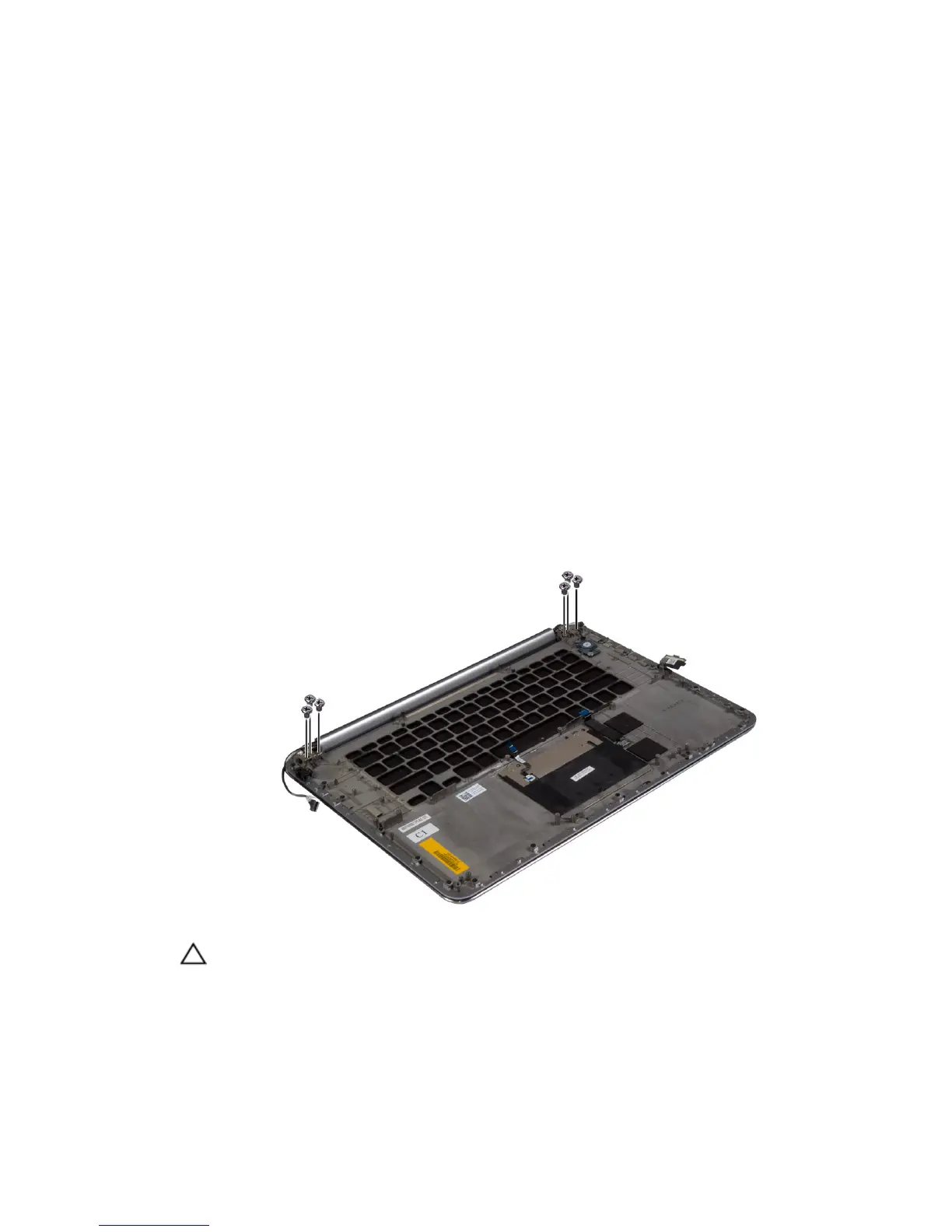

3. Remove the screws that secure the display hinges to the palmrest assembly.
4. Lift the palmrest assembly away from the display assembly.
CAUTION: Lift the palmrest assembly slowly to avoid damaging the display assembly.
