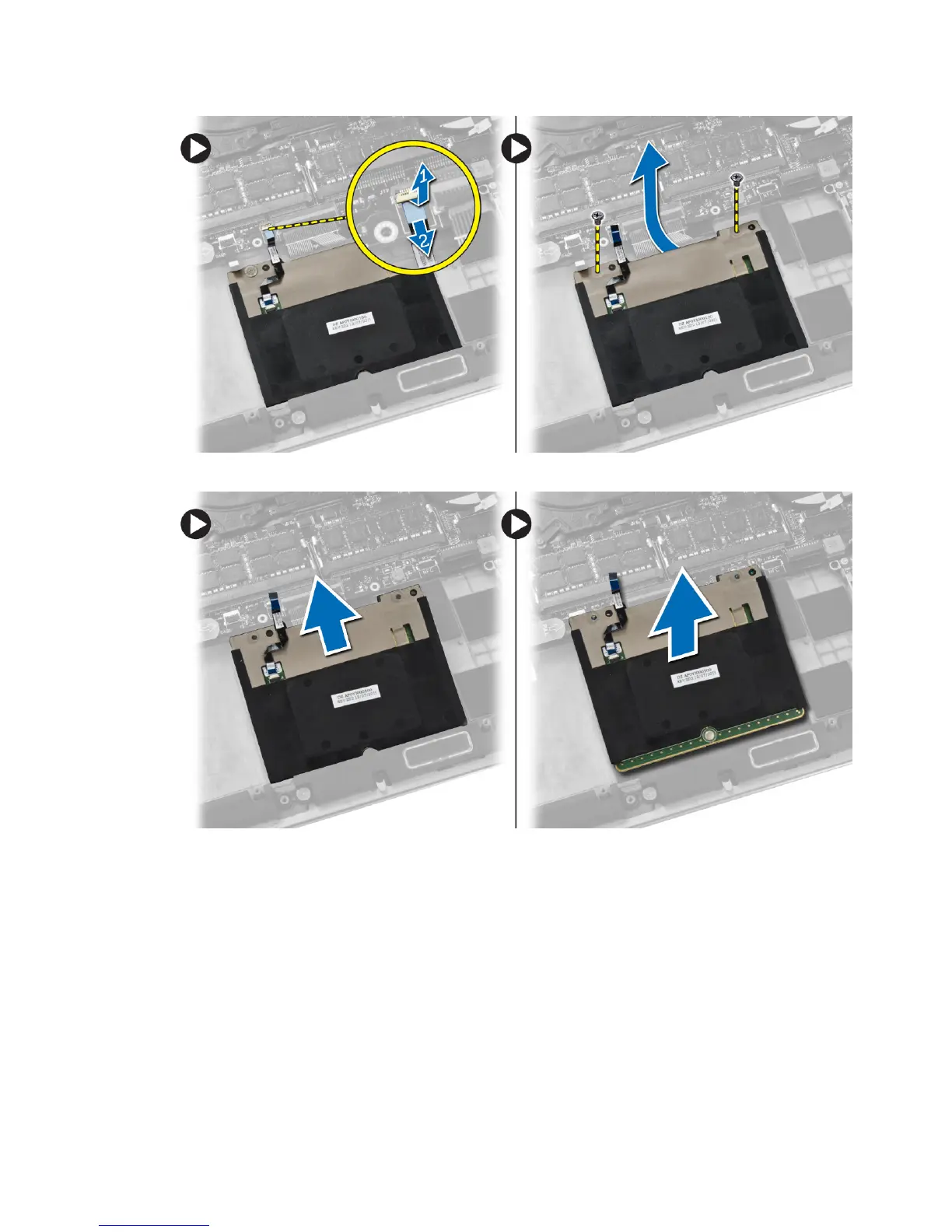

4. Slide out the touchpad and lift it away from the computer.
Installing the Touchpad
1. Align the touchpad in its position on the computer.
2. Tighten the screws to secure the touchpad to the computer.
3. Connect the touchpad cable to the system board.
4. Install the:
a) battery
b) base cover
5. Follow the procedures in
After Working Inside Your Computer
.
14
