Dell Precision M3800 - Installing the Palmrest Assembly

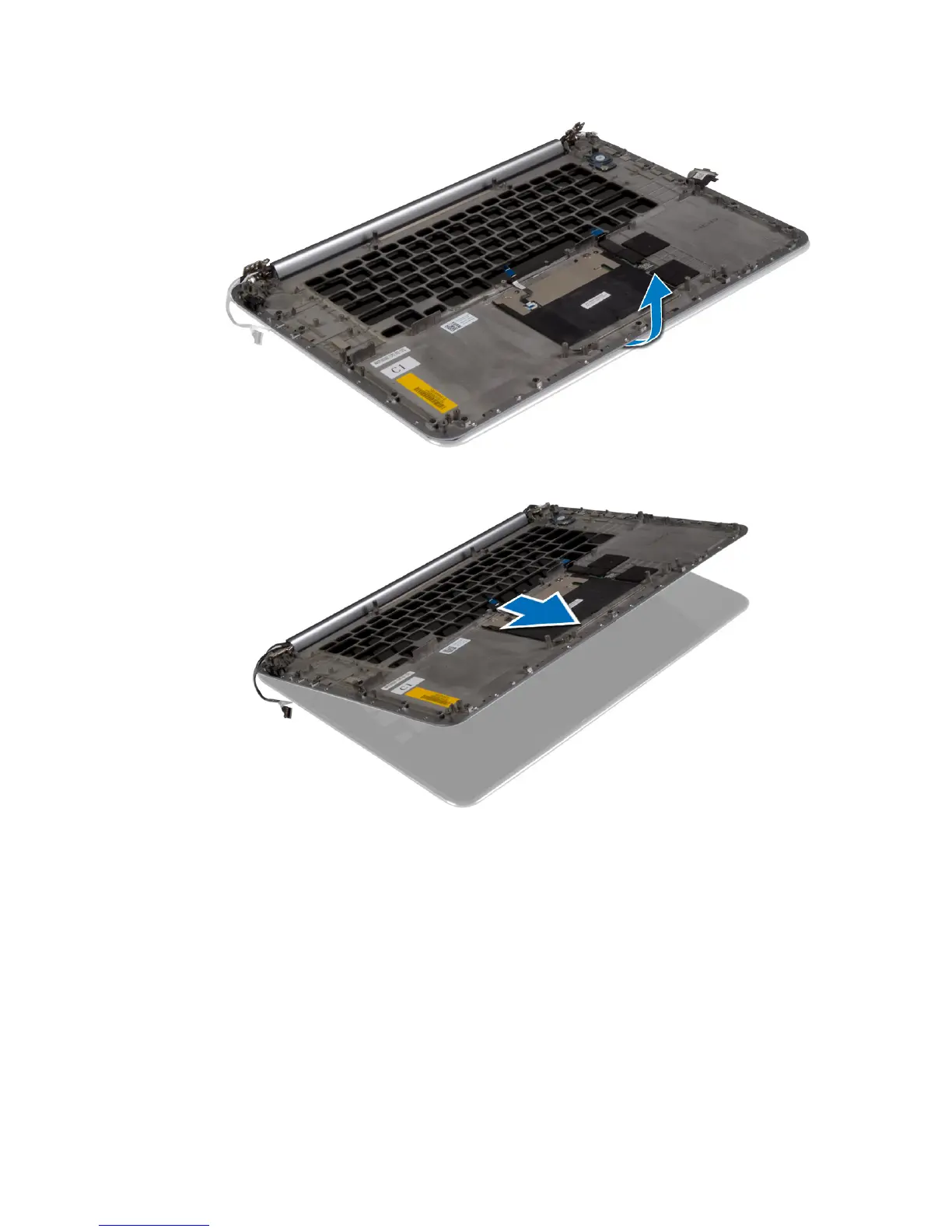

5. Remove the palmrest assembly away from the display assembly.
Installing the Palmrest Assembly
1. Align the palmrest assembly on the display assembly.
2. Tighten the screws to secure the display hinges to the palmrest assembly.
3. Press down on the palmrest assembly to close the display.
4. Install the:
a) keyboard
b) system board
c) memory modules
d) I/O board
33
