Installing the Hard Drive

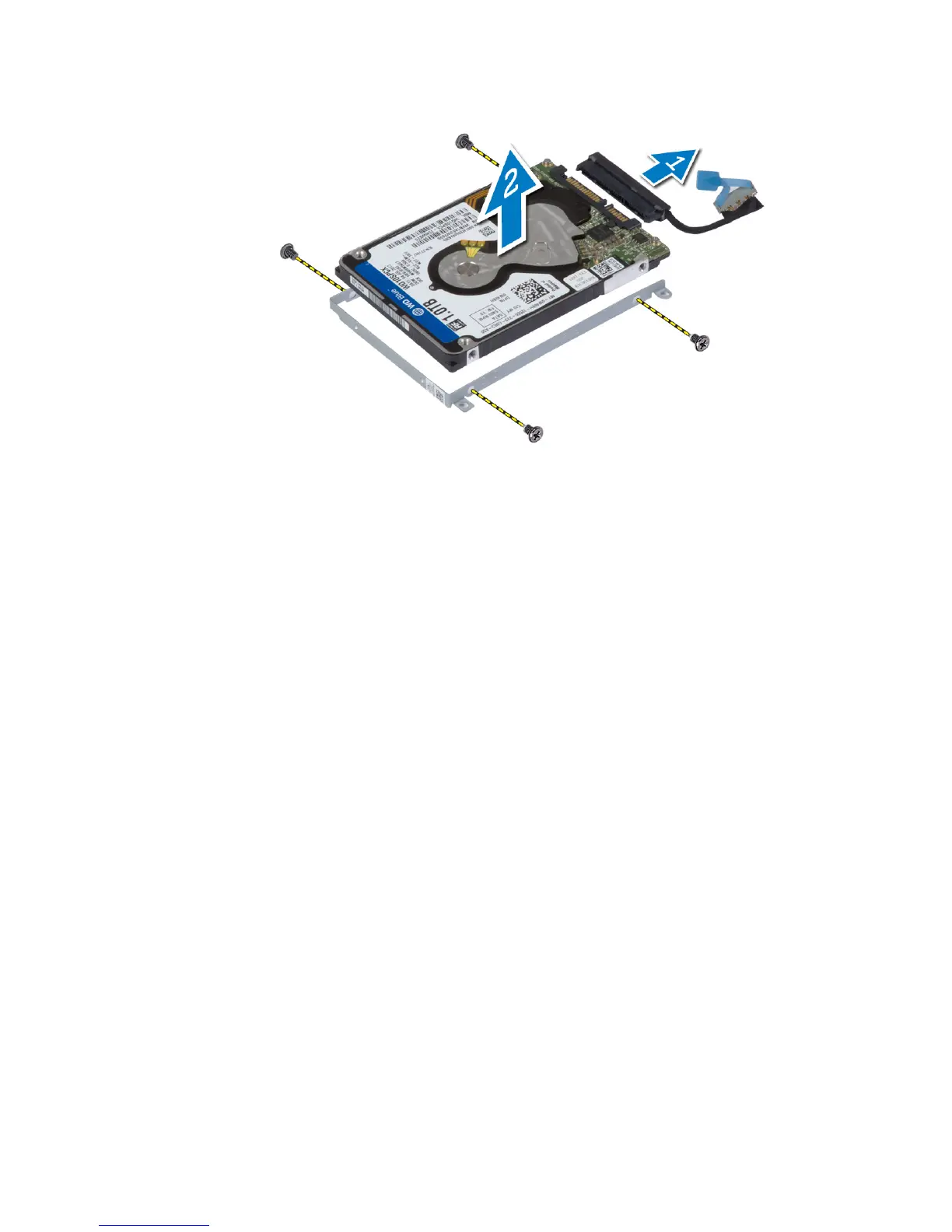

1. Align the screw holes on the hard drive-bracket with the screw holes on the hard drive.
2. Tighten the screws that secure the hard-drive bracket to the hard drive.
3. Connect the interposer to the hard drive.
4. Tighten the screws to secure the hard drive to the palmrest assembly.
5. Connect the hard-drive cable to the system board.
6. Install the:
a) battery
b) base cover
7. Follow the procedures in
After Working Inside Your Computer.
Removing the Speakers
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the:
a) base cover
b) battery
3. Perform the following steps to remove the speaker:
a) Disconnect the speaker cable from the system board.
b) Unroute the speaker cable and remove the cable from the routing tabs.
c) Remove the screw that secures the speakers to the palmrest assembly.
d) Lift the speakers, along with the speaker cable, off the palmrest assembly.
