Dell Precision M3800 - Hard Drive Removal and Installation

Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the:
a) base cover
b) battery

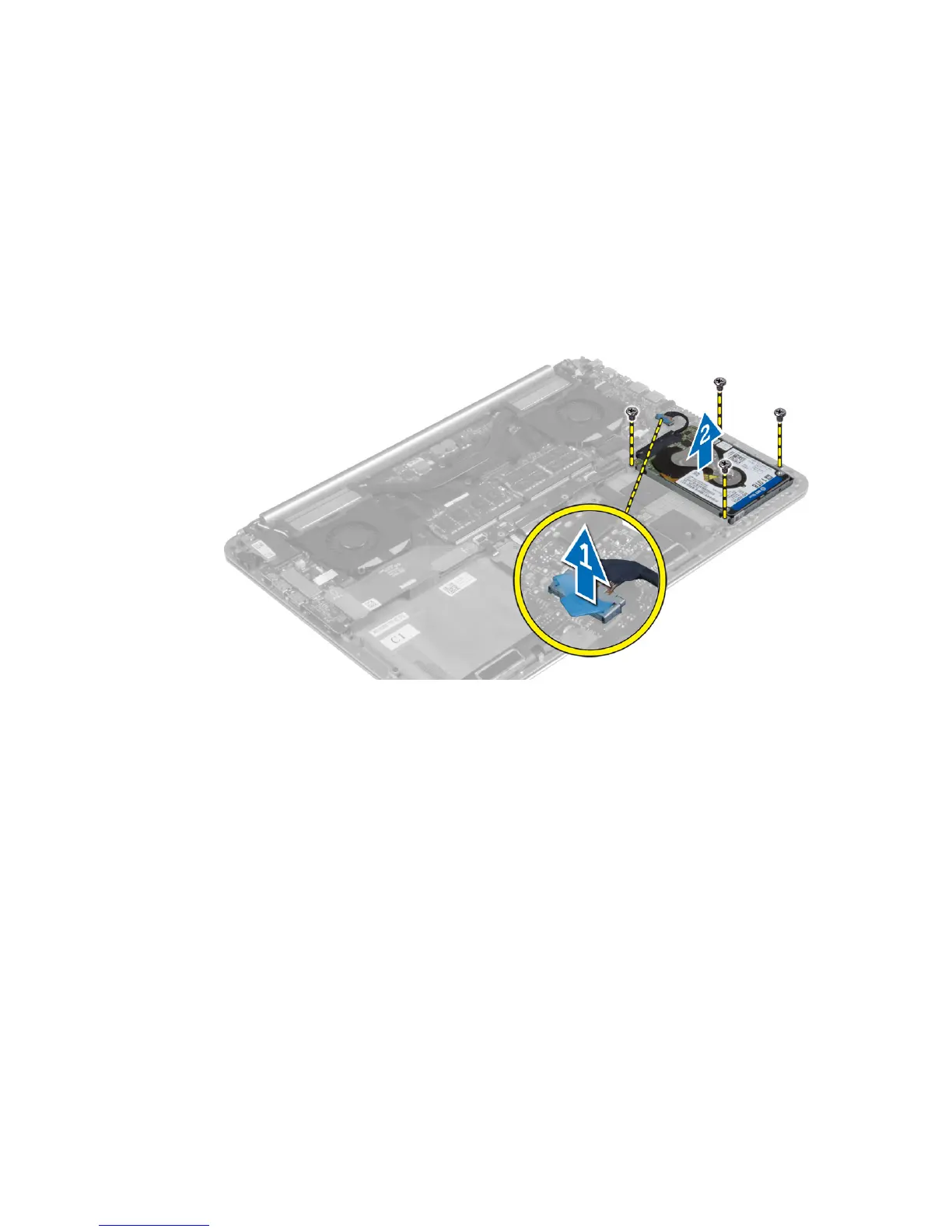

3. Perform the following steps to remove the hard drive from the palmrest assembly:
a) Disconnect the hard-drive cable from the system board.
b) Remove the screws that secure the hard drive to the palmrest assembly.
c) Lift the hard drive off the palmrest assembly.
4. Perform the following steps to remove the hard-drive bracket:
a) Disconnect the interposer from the hard drive
b) Remove the screws that secure the hard-drive bracket to the hard drive.
c) Lift the hard drive off the hard-drive bracket.
