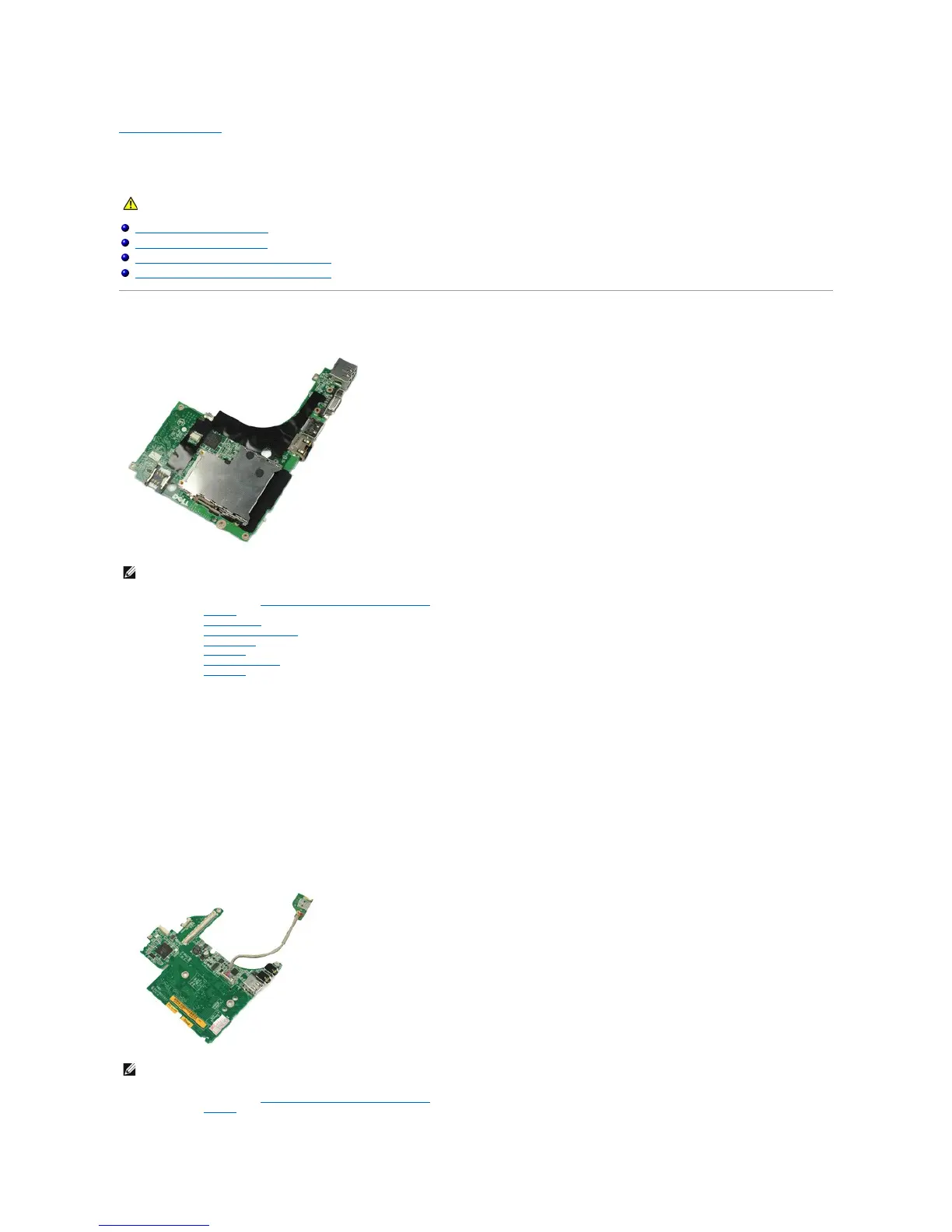

I/O and IEEE 1394 Board
DellPrecision™WorkstationM6500ServiceManual
Removing the Right I/O Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
3. Remove the access panel.
4. Remove the secondary hard drive.
5. Remove the hinge cover.
6. Remove the keyboard.
7. Remove the display assembly.
8. Remove the palm rest.
9. Remove the four screws that secure the right I/O board to the chassis.
10. Lift the right I/O board up and away from the computer.
Replacing the Right I/O Board
To replace the right I/O board, perform the above steps in reverse order.

Removing the Left I/O and IEEE 1394 Board
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the battery.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
Removing the Right I/O Board
Replacing the Right I/O Board
Removing the Left I/O and IEEE 1394 Board
Replacing the Left I/O and IEEE 1394 Board
NOTE: You may need to install Adobe®Flash®Player from Adobe.com in order to view the illustrations below.
