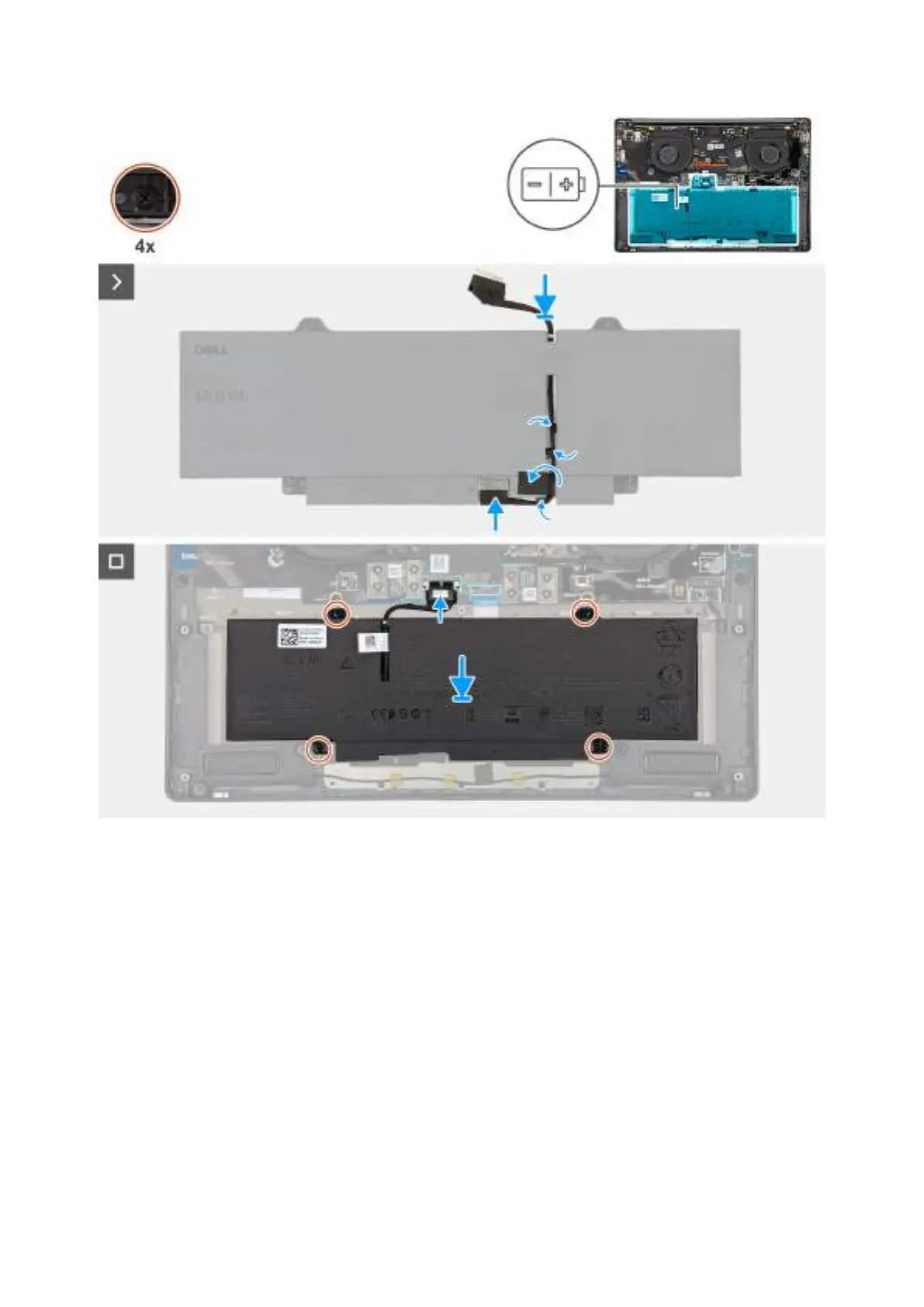

Obrázek 22. Installing the battery
Kroky
1. Align and route the battery cable through the routing guides on the battery.
2. Adhere the tape that secures the battery cable to the battery.
3. Connect the battery cable to the connector on the battery.
4. Flip the battery.
5. Using the alignment posts, place the battery on the palm-rest assembly.
6. Align the screw holes on the battery with the screw holes on the palm-rest assembly.
7. Tighten the four captive screws that secure the battery to the palm-rest assembly.
8. Connect the battery cable to the battery-cable connector on the system board.
Další kroky
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
52
Demontáž ainstalace jednotek vyměnitelných zákazníkem (CRU)
