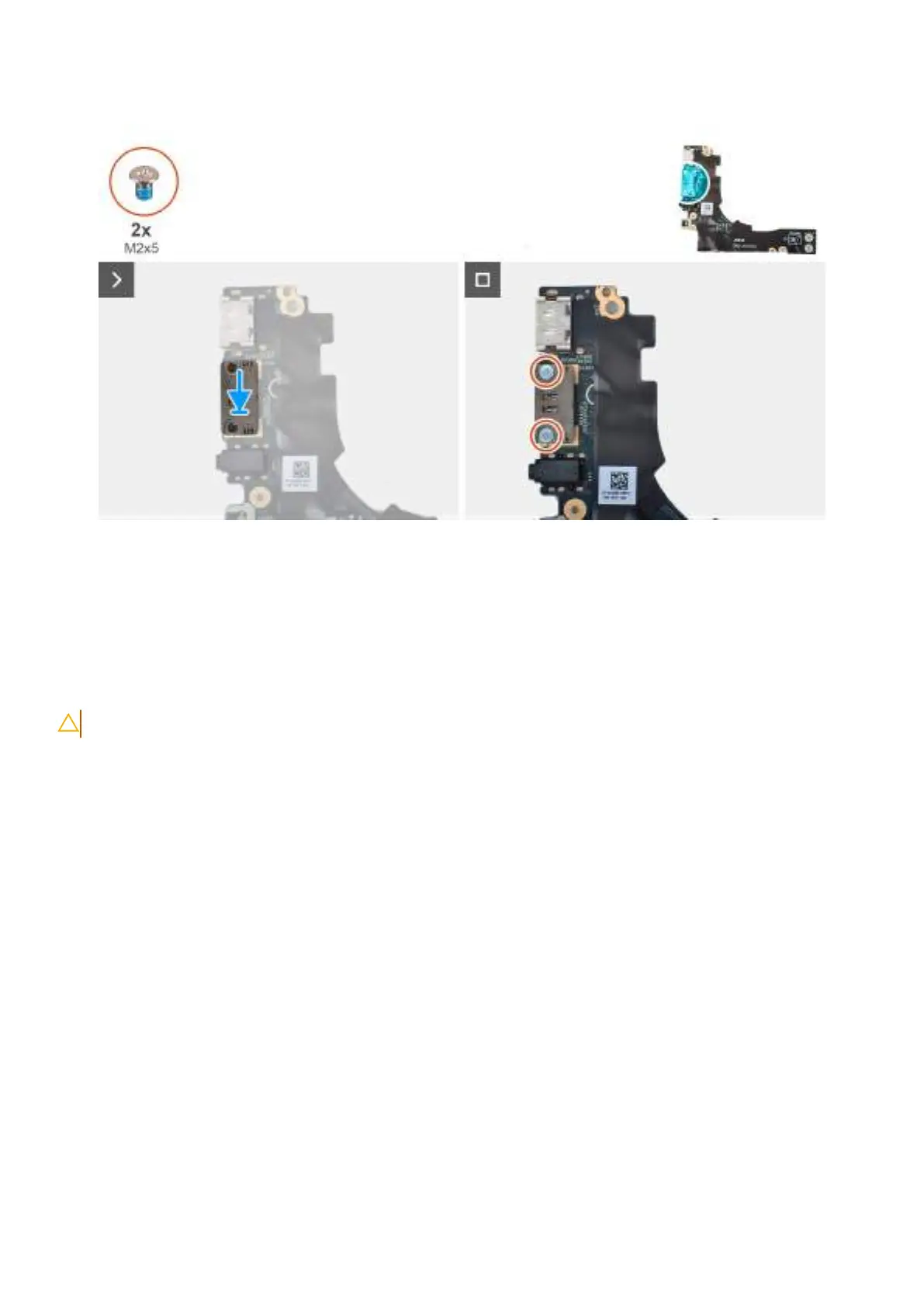

Obrázek 55. Removing the right USB Type-C module
Kroky
1. Remove the two screws (M2x5) that secure the right USB Type-C module to the right I/O-board.
2. Lift the right USB Type-C module off the right I/O-board.
Installing the right USB Type-C module
VÝSTRAHA: The information in this section is intended for authorized service technicians only.
O této úloze
The following image indicates the location of the right USB Type-C module and provides a visual representation of the installation
procedure.
Demontáž ainstalace jednotek vyměnitelných vterénu (FRU)
87
