Dell Pro 14 Premium - Removing the Right USB Type-C Module

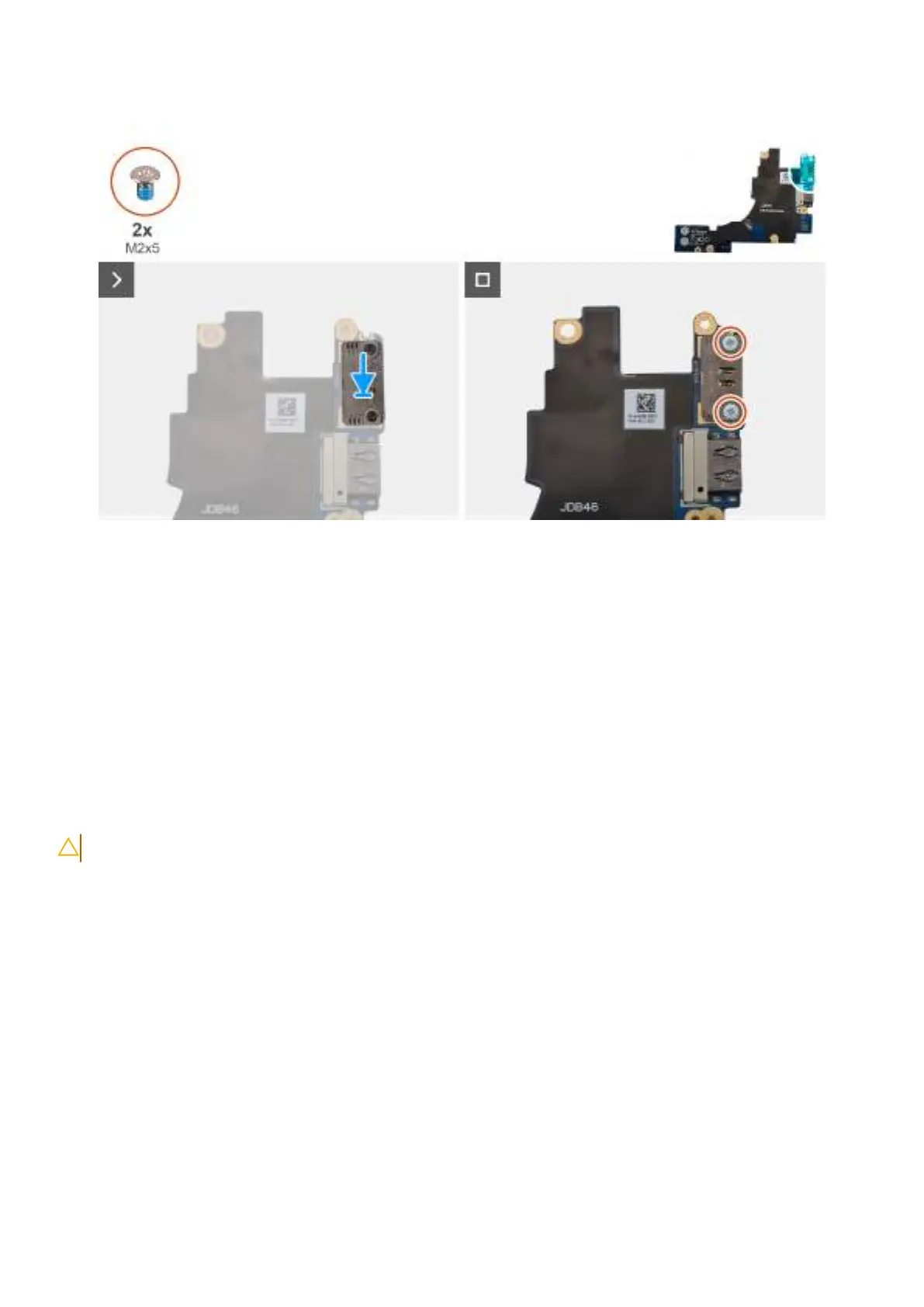

Obrázek 54. Installing the left USB Type-C module
Kroky
1. Place the left USB Type-C module on the left I/O-board.
2. Align the screw holes on the left USB Type-C module with the screw holes on the left I/O-board.
3. Replace the two screws (M2x5) that secure the left USB Type-C module to the left I/O-board.
Další kroky
1. Install the left I/O-board.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Removing the right USB Type-C module
VÝSTRAHA: The information in this section is intended for authorized service technicians only.
Požadavky
1. Follow the procedure in Before working inside your computer.
2. Remove the nano-SIM card tray.
3. Remove the nano-SIM card.
4. Remove the base cover.
5. Remove the WWAN card (for the computer shipped with WWAN card).
6. Remove the right I/O-board (for the computer shipped with WWAN card).
7. Remove the right I/O-board (for the computer shipped without WWAN card).
O této úloze
The following image indicates the location of the right USB Type-C module and provides a visual representation of the removal procedure.
