Dell Pro 14 Premium - Installing the Right I;O-Board (Without WWAN Antennas)

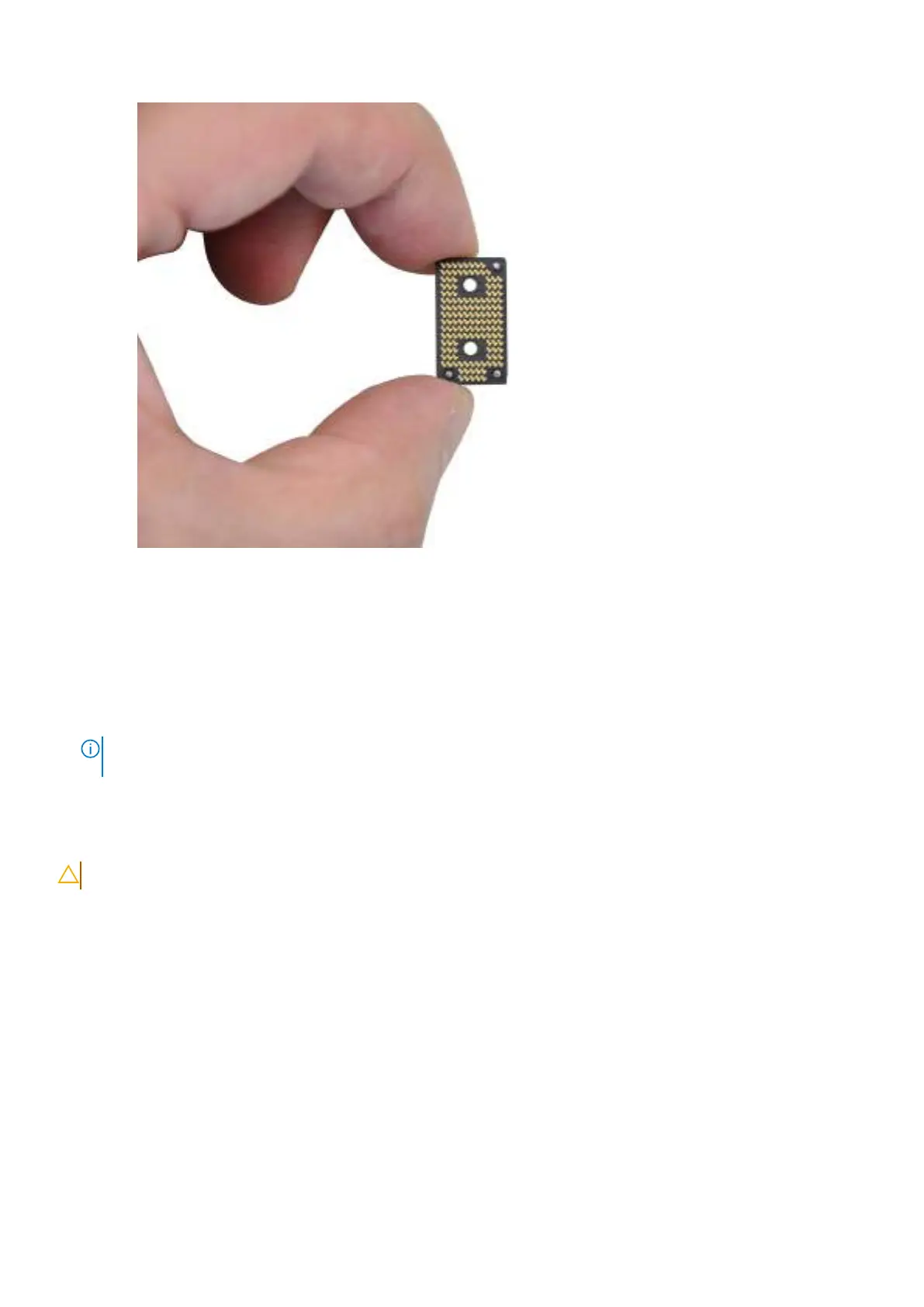

Obrázek 43. Holding the interposer board
3. Loosen the single captive screw that secures the power button connector bracket on the palm-rest and keyboard assembly .
4. Remove the power-button connector bracket from the system board.
5. Remove the right I/O-board connector from the system board.
6. Disconnect the right-fan cable connector from the right I/O-board.
7. Remove the four screws (M1.6x2.5) that secure the right I/O-board on the palm-rest and keyboard assembly.
8. Lift to remove the right I/O-board off the palm-rest and keyboard assembly.
POZNÁMKA:
When replacing the right I/O-board, ensure that the right USB Type-C module is removed and transferred to the
new replacement right I/O-board.
Installing the right I/O-board (without WWAN antennas)
VÝSTRAHA: The information in this section is intended for authorized service technicians only.
Požadavky
If you are replacing a component, remove the existing component before performing the installation process.
O této úloze
The following image indicates the location of the right I/O-board and provides a visual representation of the installation procedure.
