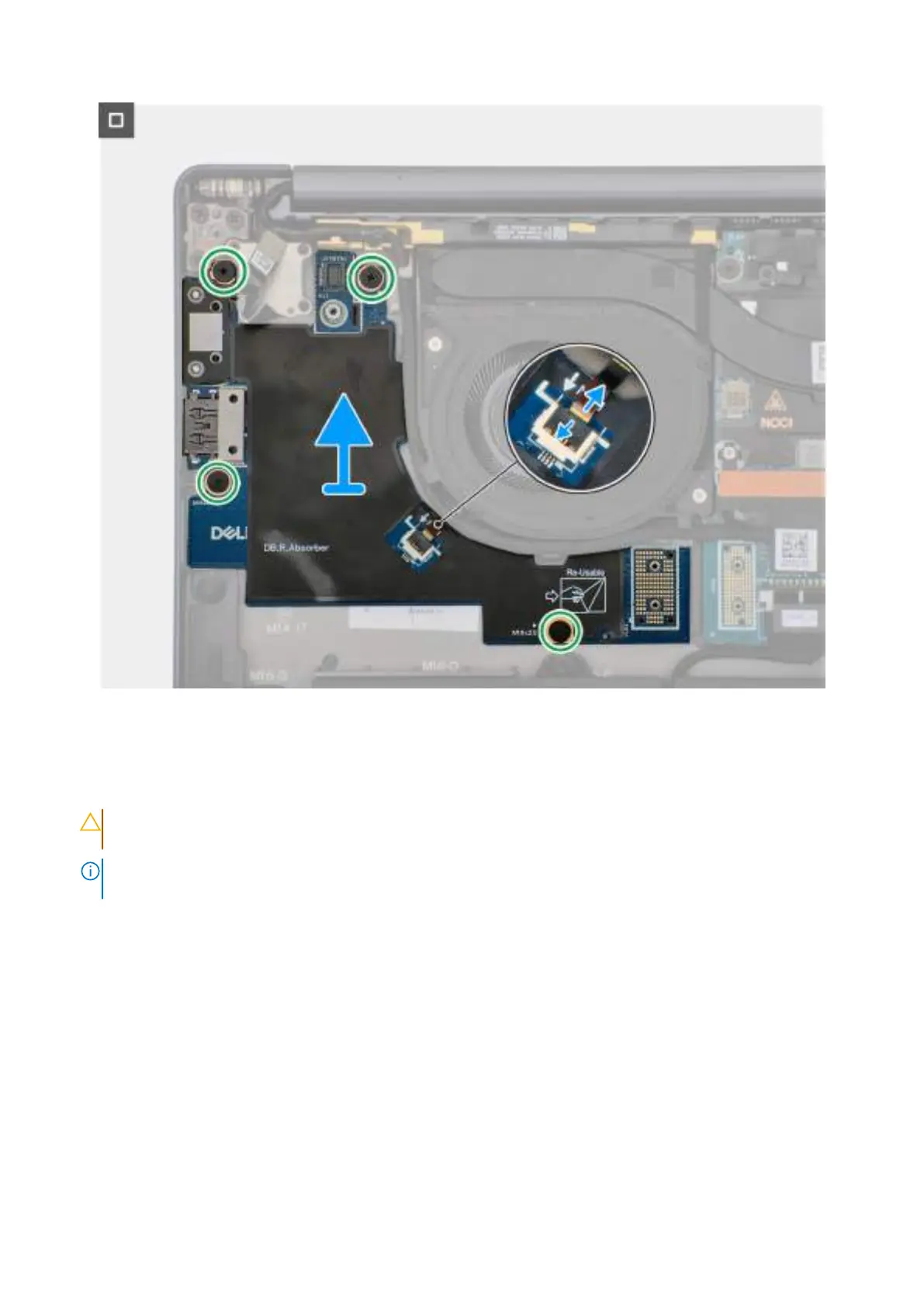

Obrázek 42. Removing the right I/O-board (without WWAN antennas)
Kroky
1. Remove the four screws (M1.6x5.5) that secure the right I/O-board connector on the system board.
2. Remove the two interposer boards from the left-I/O board and system board.
VÝSTRAHA:
Technicians must remove the interposer board immediately after removing the I/O-board connector to
prevent the board from falling out of the system during subsequent removal procedures.
POZNÁMKA: The pins on the interposer board are fragile. Avoid contact with the pins on the board, instead handle the board by
lifting and holding from the edges or the sides.
74 Demontáž ainstalace jednotek vyměnitelných vterénu (FRU)
