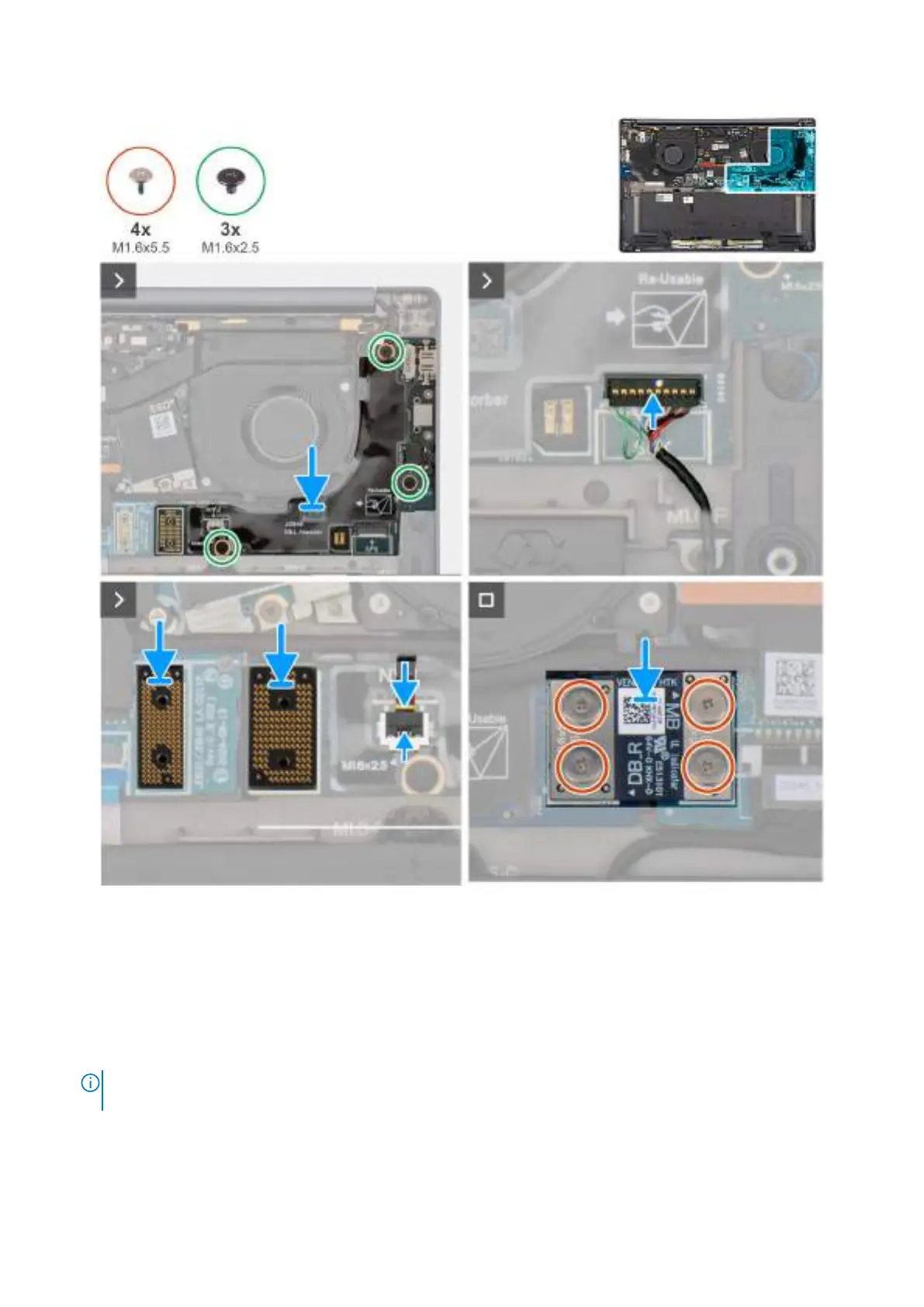

Obrázek 39. Installing the left I/O-board
Kroky
1. Place the left I/O-board on the palm-rest and keyboard assembly.
2. Align the screw holes on the left I/O-board with the screw holes on the palm-rest and keyboard assembly.
3. Replace the three screws (M1.6x2.5) that secure the left I/O-board on the palm-rest and keyboard assembly.
4. Connect the speaker cable and left-fan cable to the left I/O-board.
5. Replace the two interposer boards from the left-I/O board and system board.
POZNÁMKA:
The pins on the interposer board are fragile. Avoid contact with the pins on the board, instead handle the board by
lifting and holding from the edges or the sides.
