Dell PS Series User Manual

Installation and Setup Software Configuration
3–10

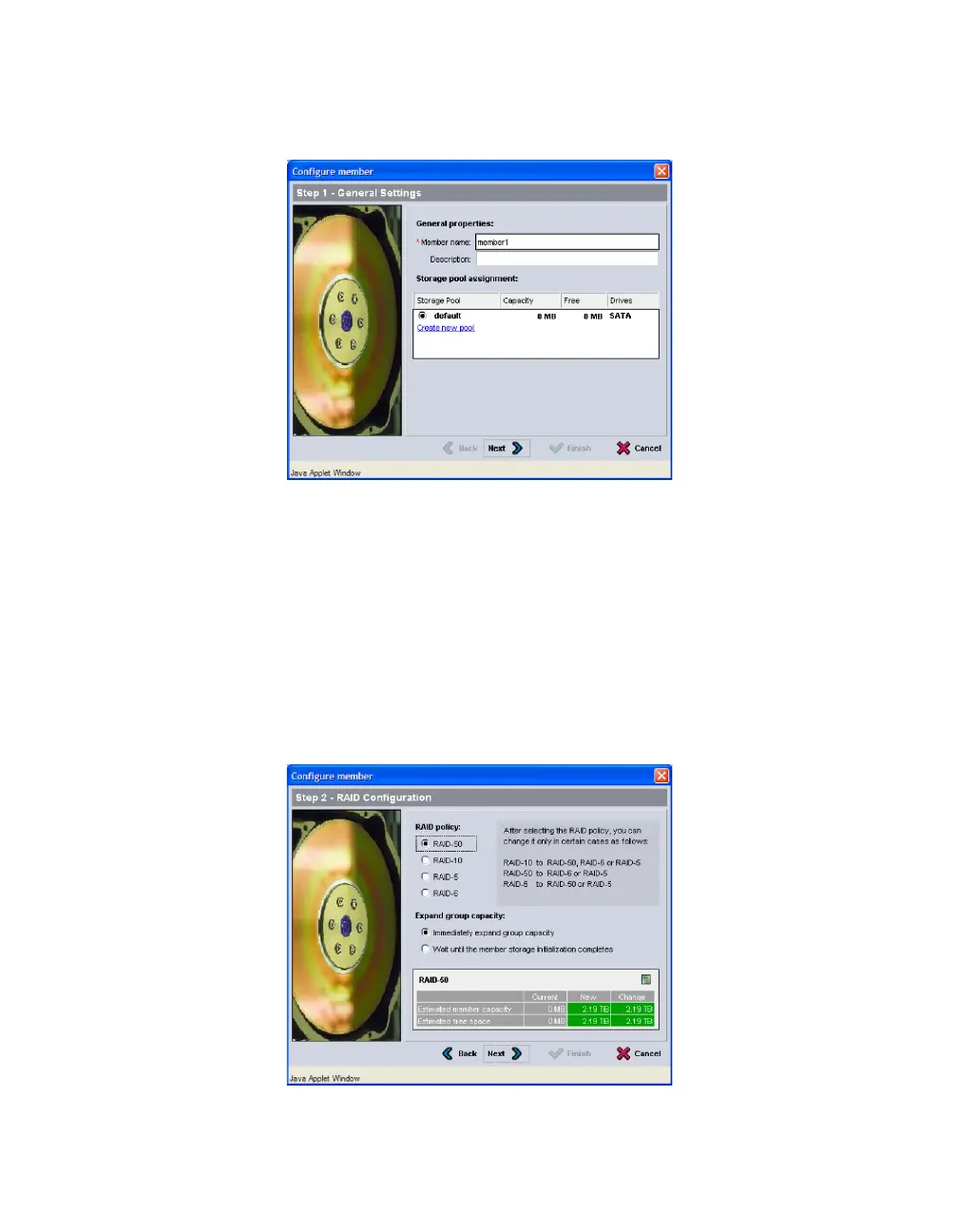

Figure 3-3: Configure Member – General Settings
5. In the Configure Member – RAID Configuration dialog box (Figure 3-4), do
the following and then click
Next.
• Select the RAID policy.
• Optionally, to delay using the member’s storage space until the RAID
verification completes and the batteries are fully charged, select
Wait
until the member storage initialization completes
. By
default, the space is immediately available, although performance will not
be optimal until the RAID verification completes.
Figure 3-4: Configure Member – RAID Configuration

Dell PS Series Specifications

General

Category	Storage
Type	SAN (Storage Area Network)
RAID Support	RAID 5, RAID 6, RAID 10
Connectivity	iSCSI
Management	Dell Storage Manager
Data Protection	Snapshots, replication
Operating System Compatibility	Windows, Linux, VMware, Hyper-V
Capacity	Varies by model (e.g., 4TB to 1PB)
Product Type	Enterprise Storage Array
