Dell PS Series User Manual

Installation and Setup Storage Allocation
4–3
Using the GUI to Create a Volume
1. Log in to the group.
Specify the group IP address in a Web browser. Then, in the login dialog box
(Figure 3-1), enter the
grpadmin account name and the password that you
specified when creating the group.
2. In the Group Summary window, click
Create volume in the Activities
panel.
3. Enter the volume name and an optional description (Figure 4-1), and click
Next.

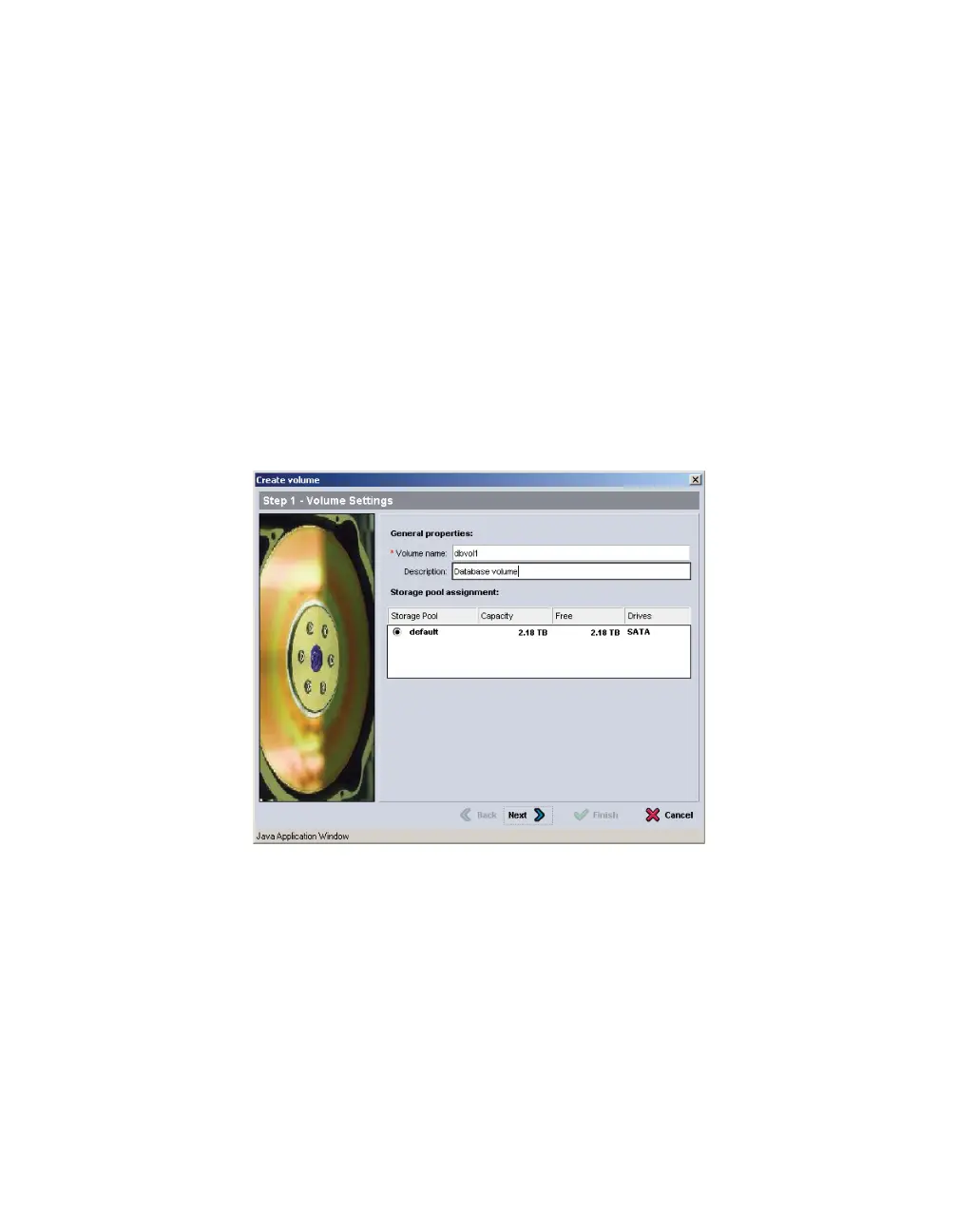

Figure 4-1: Create Volume – Volume Settings
4. Enter the volume size and click
Next (Figure 4-2). The table values will
reflect the size you specify.

Dell PS Series Specifications

General

Category	Storage
Type	SAN (Storage Area Network)
RAID Support	RAID 5, RAID 6, RAID 10
Connectivity	iSCSI
Management	Dell Storage Manager
Data Protection	Snapshots, replication
Operating System Compatibility	Windows, Linux, VMware, Hyper-V
Capacity	Varies by model (e.g., 4TB to 1PB)
Product Type	Enterprise Storage Array
