Dell PS Series - Page 40

Installation and Setup Storage Allocation
4–4

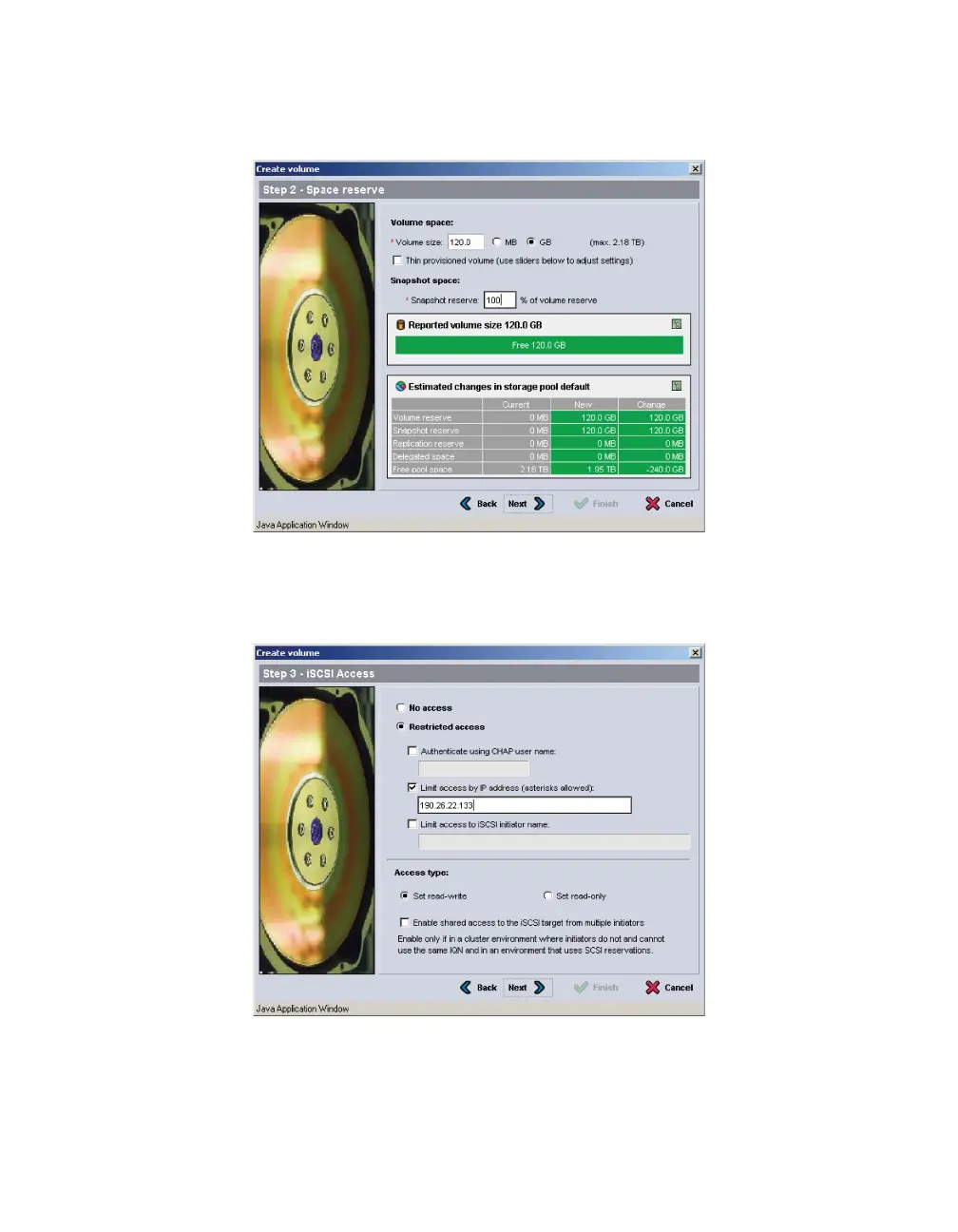

Figure 4-2: Create Volume – Space Reserve
5. Specify the iSCSI initiator name or IP address for the access control record
and click
Next (Figure 4-3).
Figure 4-3: Create Volume – iSCSI Access
6. Review the summary information (Figure 4-4) and click
Finish if the
volume configuration is correct. Click
Back to make changes.
