Dell XC Core XC760

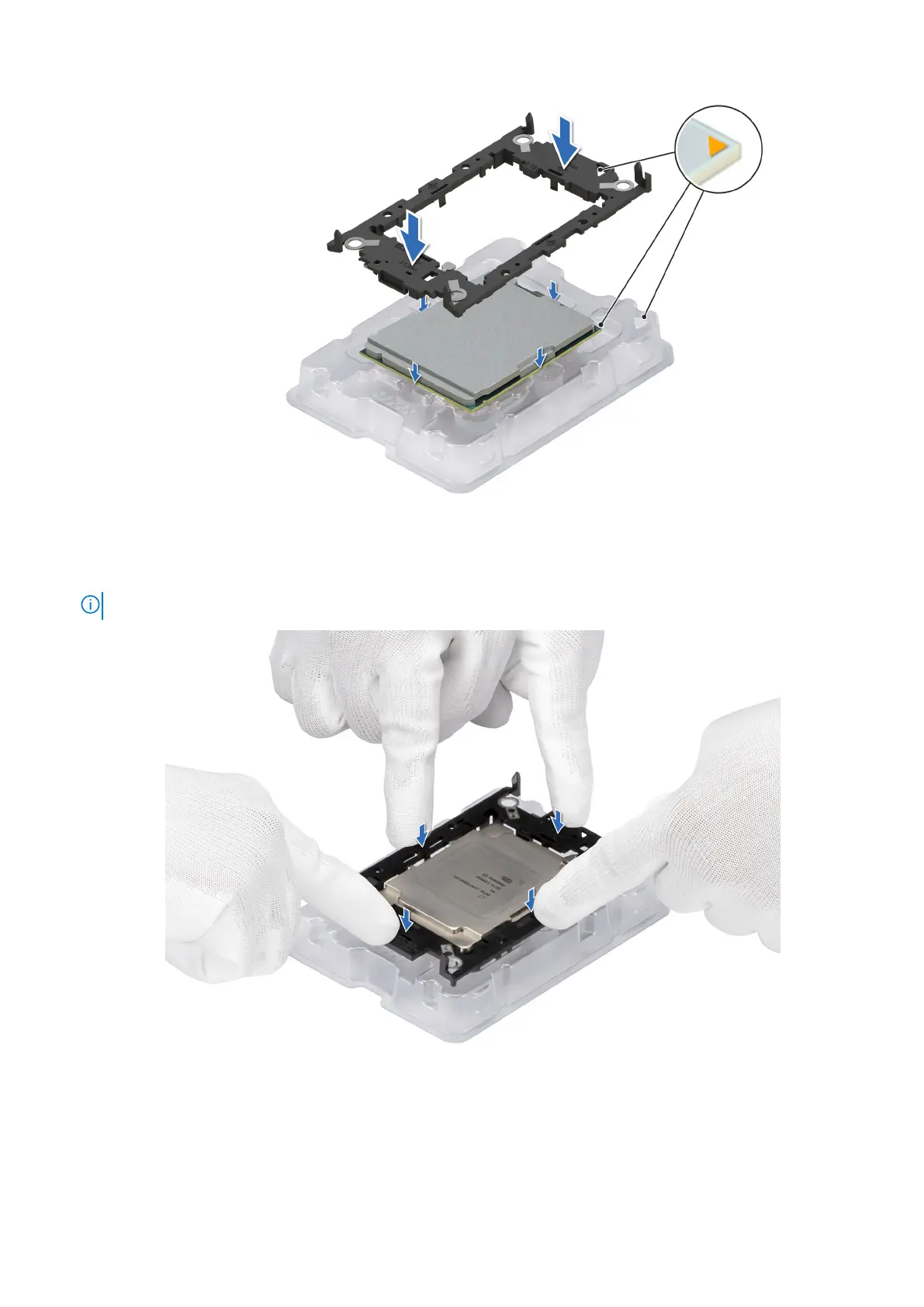

Figure 82. Installing the retaining clip
3. Align the processor with retaining clip, by using your fingers press the retaining clip on all the four sides until it clicks into
place.
NOTE: Ensure that the processor is securely latched to the retaining clip.
Figure 83. Press the retaining clip on the four sides
4. If you are using an existing DLC module, remove the thermal grease from the DLC module by using a clean lint-free cloth.
5. Apply the thermal grease syringe in a quadrilateral design on the top of the processor.
6. Use the thermal grease syringe included with your processor kit to apply the grease in a thin spiral design on the bottom of
the DLC module.
Installing and removing system components
105
