Steps
1. Loosen the captive screws on the riser and system.
2. Press the blue release tab or blue button on the riser and holding the edges lift the expansion card riser from the riser
connector on the system board.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

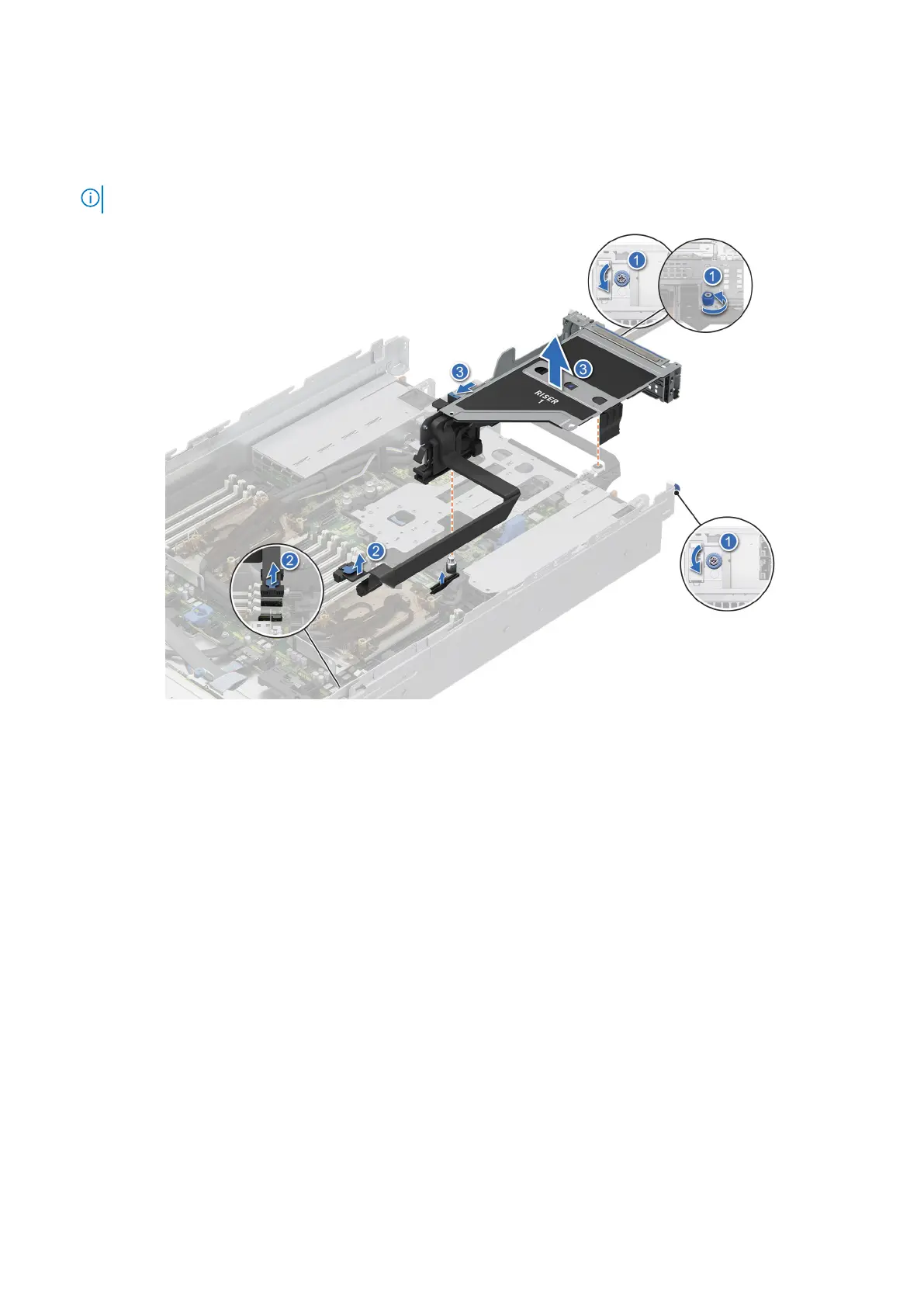

Figure 112. Removing the expansion card riser 1
