Dell XC Core XC760 User Manual

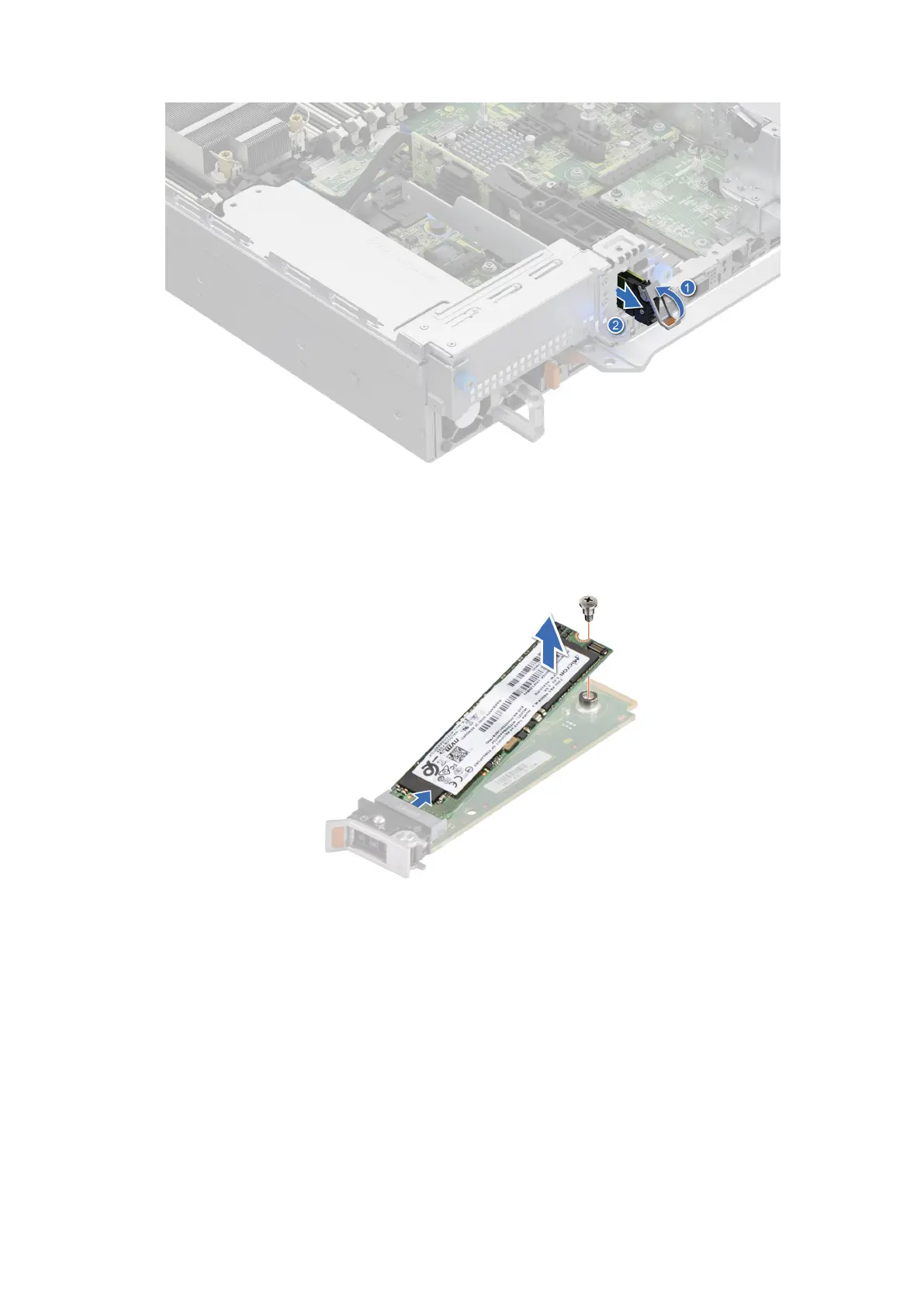

Figure 158. Removing the BOSS-N1 card carrier
3. Using the Phillips #1 screwdriver remove the M3 x 0.5 x 4.5 mm screw that secures the M.2 NVMe SSD to the BOSS-N1
card carrier.
4. Slide the M.2 NVMe SSD out from the BOSS-N1 card carrier.
Figure 159. Removing the M.2 NVMe SSD
5. Disconnect the BOSS-N1 power and signal cable from the system board.
6. Using the Phillips #1 screwdriver remove the M3 x 0.5 x 4.5 mm screw that secures the BOSS-N1 module on Riser 1.
7. Slide the BOSS-N1 module towards the front of the chassis and lift the module.
164
Installing and removing system components
