Dell XC Core XC760

NOTE: Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 36. 12 x 3.5-inch SAS/SATA + 2 x 2.5-inch SAS/SATA with APERC11/12 in Riser 2
Order From To
1 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
2 CTRL_SRC_SB1_PB1 (adapter PERC controller
connector) and BP_DST_SB1 (backplane signal
connector)
BP_DST_SA1 (rear backplane signal connector) and
BP_DST_SB1 (rear backplane signal connector)
3 CTRL_SRC_SA1_PA1 (adapter PERC controller
connector)
BP_DST_SA1 (backplane signal connector)
4 SIG_PWR_0 (system board power connector) BP_PWR_1 (rear backplane power connector)

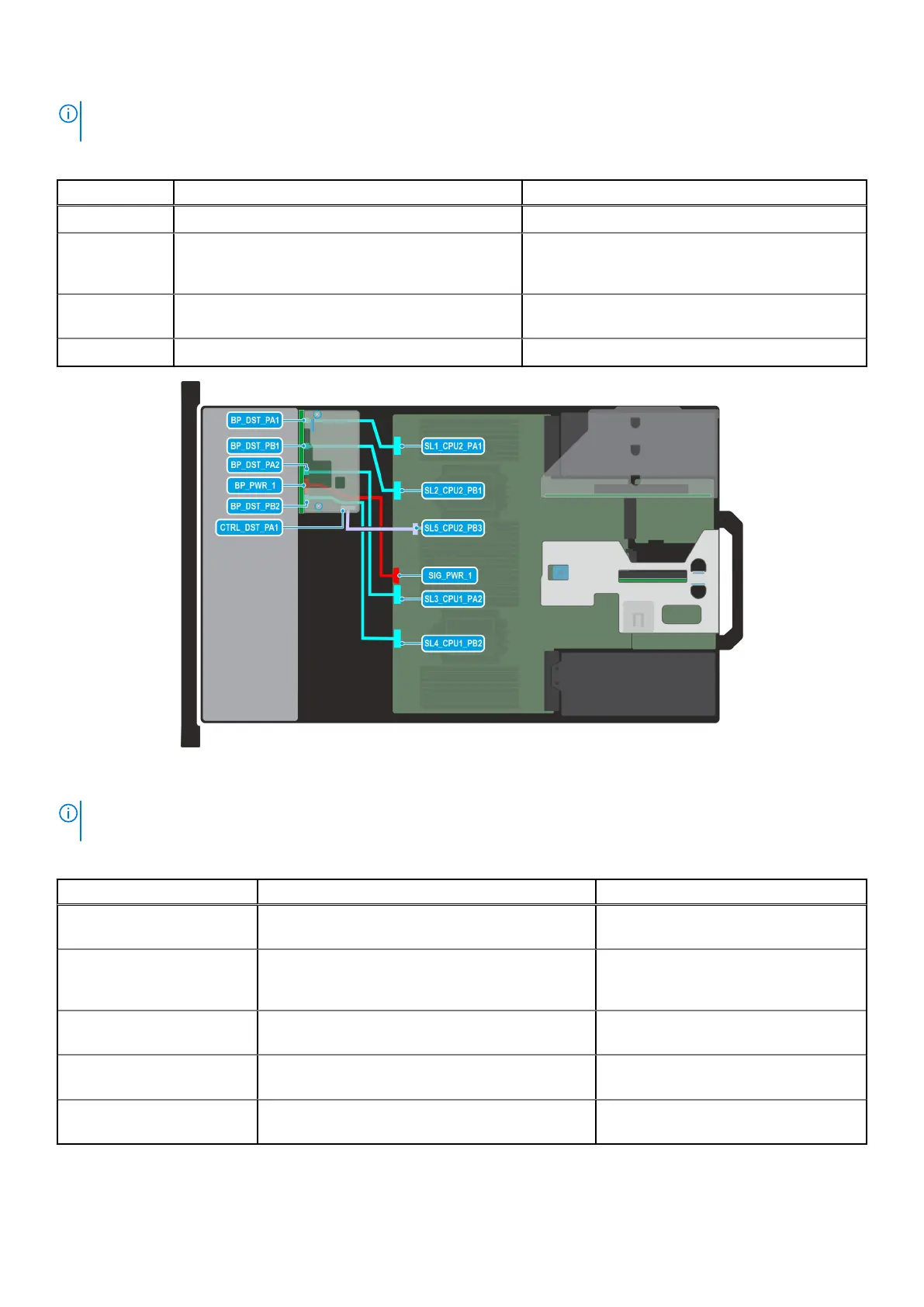

Figure 58. Configuration 8: 8 x 2.5-inch Universal (SAS/SATA/NVMe) with fPERC (HBA355i)
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 37. 8 x 2.5-inch Universal (SAS/SATA/NVMe) with fPERC (HBA355i) 
Order From To
1 SL5_CPU2_PB3 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input
connector)
2 SL3_CPU1_PA2 (signal connector on system
board) and SL4_CPU1_PB2 (signal connector on
system board)
BP_DST_PA2 (backplane signal
connector) and BP_DST_PB2
(backplane signal connector)
3 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power
connector)
4 SL2_CPU2_PB1 (signal connector on system
board)
CTRL_DST_PB1 (fPERC input
connector)
5 SL1_CPU2_PA1 (signal connector on system board) CTRL_DST_PA1 (fPERC input
connector)
82 Installing and removing system components
