Dell XC Core XC760

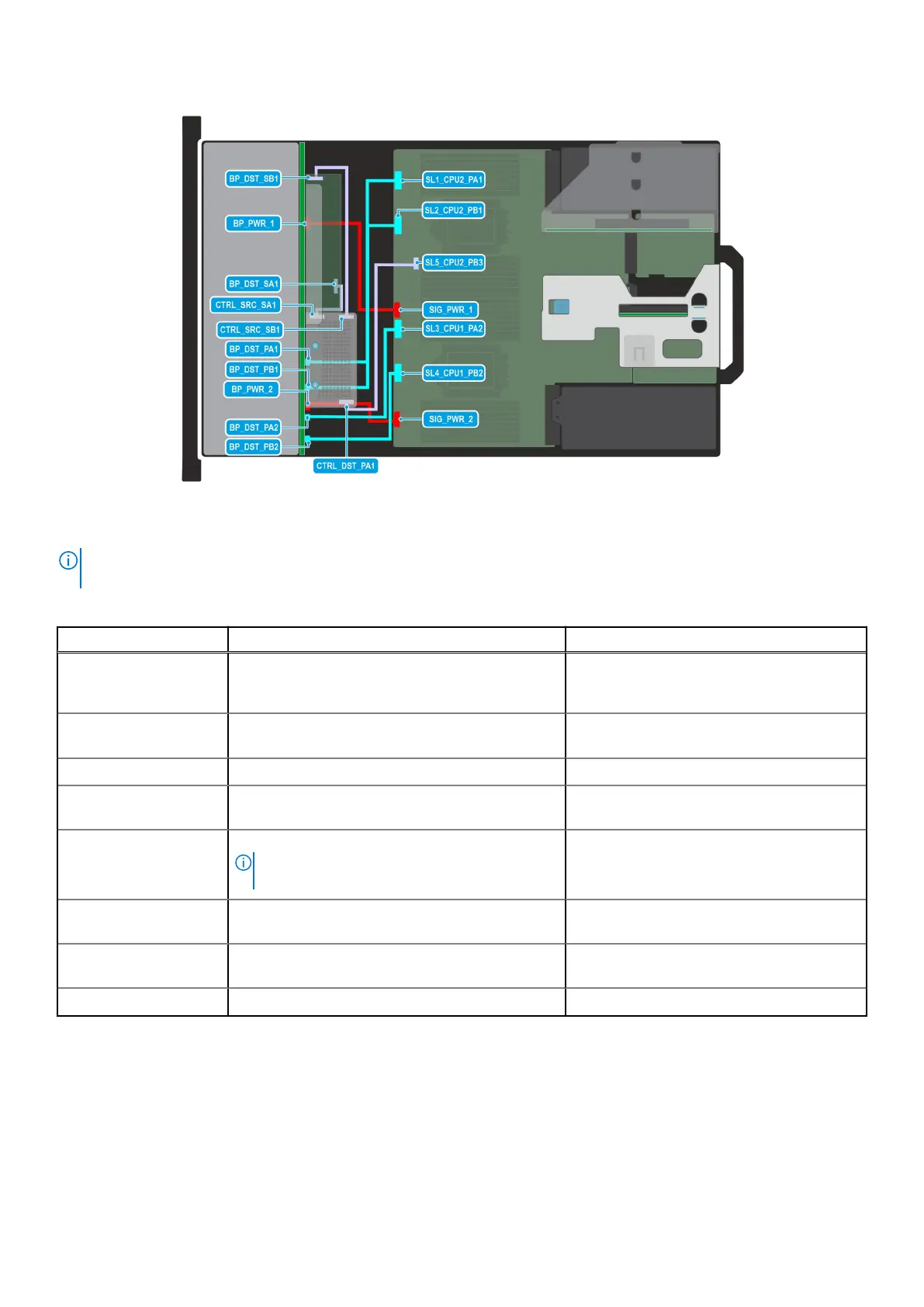

Figure 63. Configuration 35: 24 x 2.5-inch SAS/SATA with 8 universal (SAS/SATA) slots and fPERC (HBA355i)
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 42. 24 x 2.5-inch SAS/SATA with 8 universal (SAS/SATA) slots and fPERC (HBA355i)
Order From To
1 SL1_CPU2_PA1 (signal connector on system
board) and SL2_CPU2_PB1 (signal connector on
system board)
BP_DST_PA1 (backplane signal connector)
and BP_DST_PB1 (backplane signal
connector)
2 SL5_CPU2_PB3 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input connector)
3 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
4 CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SB1 (backplane expander signal
connector)
5 CTRL_SRC_SA1 (fPERC controller connector)
NOTE: Tightening the connector screws
secures the connector end.
BP_DST_SA1 (backplane expander signal
connector)
6 SL3_CPU1_PA2 (signal connector on system
board)
BP_DST_PA2 (backplane signal connector)
7 SL4_CPU1_PB2 (signal connector on system
board)
BP_DST_PB2 (backplane signal connector)
8 SIG_PWR_2 (system board power connector) BP_PWR_2 (backplane power connector)
Installing and removing system components 87
