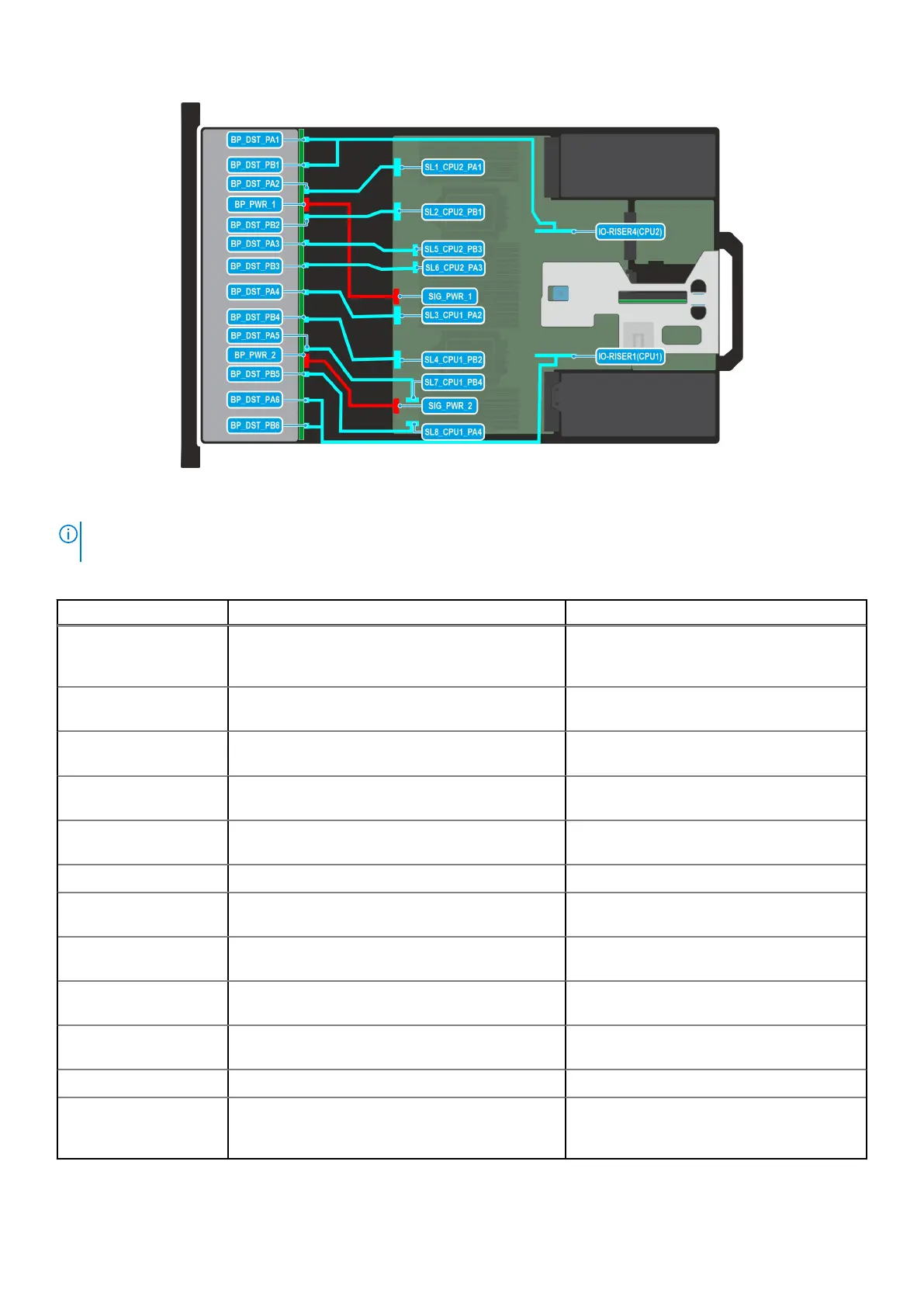

Figure 64. Configuration 41: 24 x 2.5-inch (NVMe Gen4) Passive
NOTE: Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 43. 24 x 2.5-inch (NVMe Gen4) Passive
Order From To
1 IO_RISER4(CPU2) (Riser 4 connector on system
board)
BP_DST_PA1 (backplane signal connector)
and BP_DST_PB1 (backplane signal
connector)
2 SL1_CPU2_PA1 (signal connector on system
board)
BP_DST_PA2 (backplane signal connector)
3 SL2_CPU2_PB1 (signal connector on system
board)
BP_DST_PB2 (backplane signal connector)
4 SL5_CPU2_PB3 (signal connector on system
board)
BP_DST_PA3 (backplane signal connector)
5 SL6_CPU2_PA3 (signal connector on system
board)
BP_DST_PB3 (backplane signal connector)
6 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
7 SL3_CPU1_PA2 (signal connector on system
board)
BP_DST_PA4 (backplane signal connector)
8 SL4_CPU1_PB2 (signal connector on system
board)
BP_DST_PB4 (backplane signal connector)
9 SL7_CPU1_PB4 (signal connector on system
board)
BP_DST_PA5 (backplane signal connector)
10 SL8_CPU1_PA4 (signal connector on system
board)
BP_DST_PB5 (backplane signal connector)
11 SIG_PWR_2 (system board power connector) BP_PWR_2 (backplane power connector)
12 IO_RISER1(CPU1) (Riser 1 connector on system
board)
BP_DST_PA6 (backplane signal connector)
and BP_DST_PB6 (backplane signal
connector)
