Dell XC Core XC760 User Manual

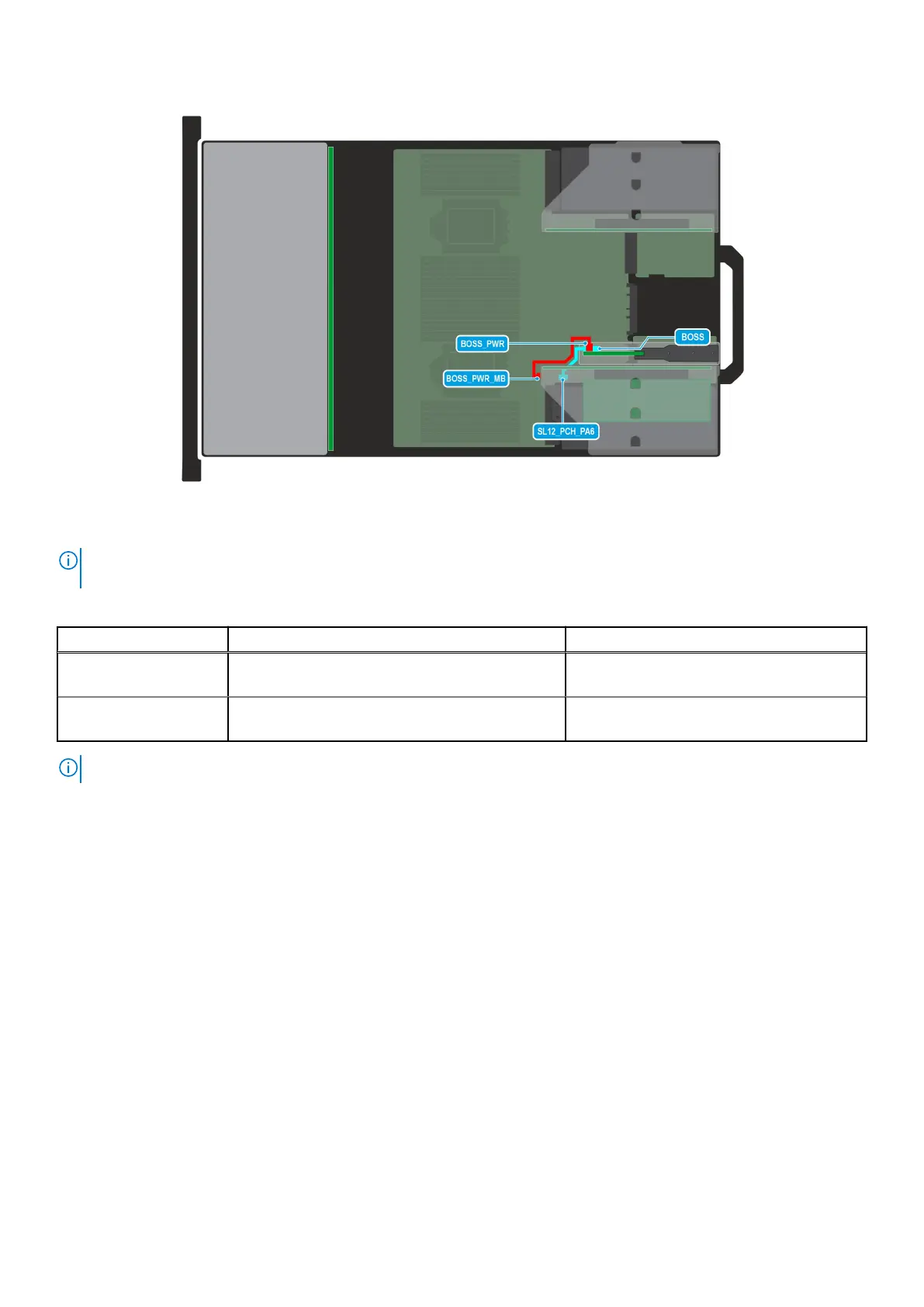

Figure 65. Configuration 42: BOSS-N1 module in Riser 1
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 44. BOSS-N1 module in Riser 1
Order From To
1 BOSS_PWR_MB (BOSS power connector on
system board)
BOSS_PWR (BOSS module power
connector)
2 SL12_PCH_PA6 (signal connector on system
board)
BOSS (BOSS module signal connector)
NOTE: The BOSS-N1 power and signal cables are routed beneath Riser 1 and ensure not to damage the cables.
Installing and removing system components 89
