YDT-35 Operating and Servicing Manual
HL066(EN) ISSUE 1, 05/2015 13

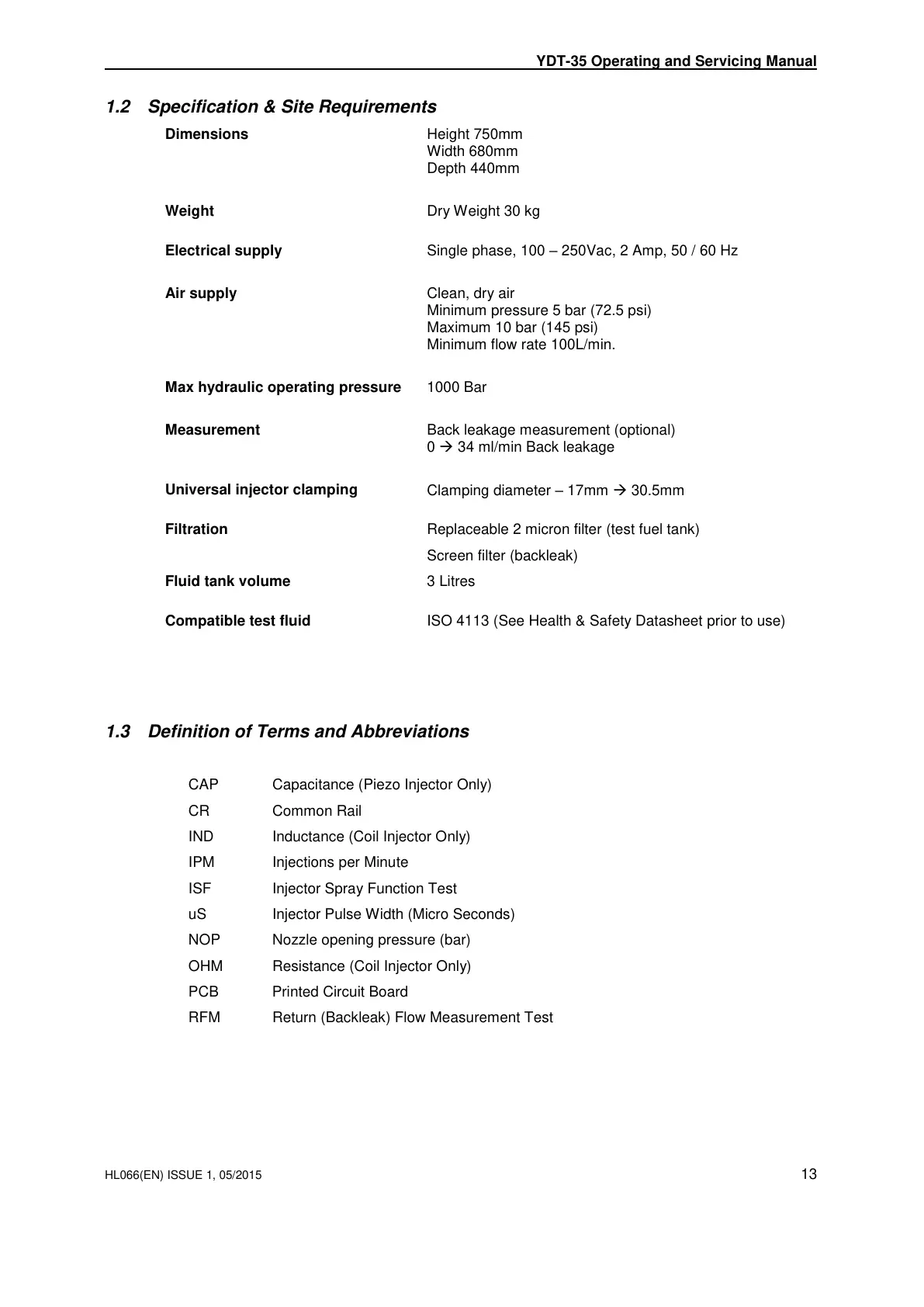

1.2 Specification & Site Requirements
Height 750mm
Width 680mm
Depth 440mm
Single phase, 100 – 250Vac, 2 Amp, 50 / 60 Hz
Clean, dry air
Minimum pressure 5 bar (72.5 psi)
Maximum 10 bar (145 psi)
Minimum flow rate 100L/min.
Max hydraulic operating pressure
Back leakage measurement (optional)
0 34 ml/min Back leakage
Universal injector clamping
Clamping diameter – 17mm 30.5mm
Replaceable 2 micron filter (test fuel tank)
Screen filter (backleak)
ISO 4113 (See Health & Safety Datasheet prior to use)
1.3 Definition of Terms and Abbreviations
CAP Capacitance (Piezo Injector Only)
CR Common Rail
IND Inductance (Coil Injector Only)
IPM Injections per Minute
ISF Injector Spray Function Test
uS Injector Pulse Width (Micro Seconds)
NOP Nozzle opening pressure (bar)
OHM Resistance (Coil Injector Only)
PCB Printed Circuit Board
RFM Return (Backleak) Flow Measurement Test
THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016
Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
