YDT-35 Operating and Servicing Manual

HL066(EN) ISSUE 1, 05/2015 27

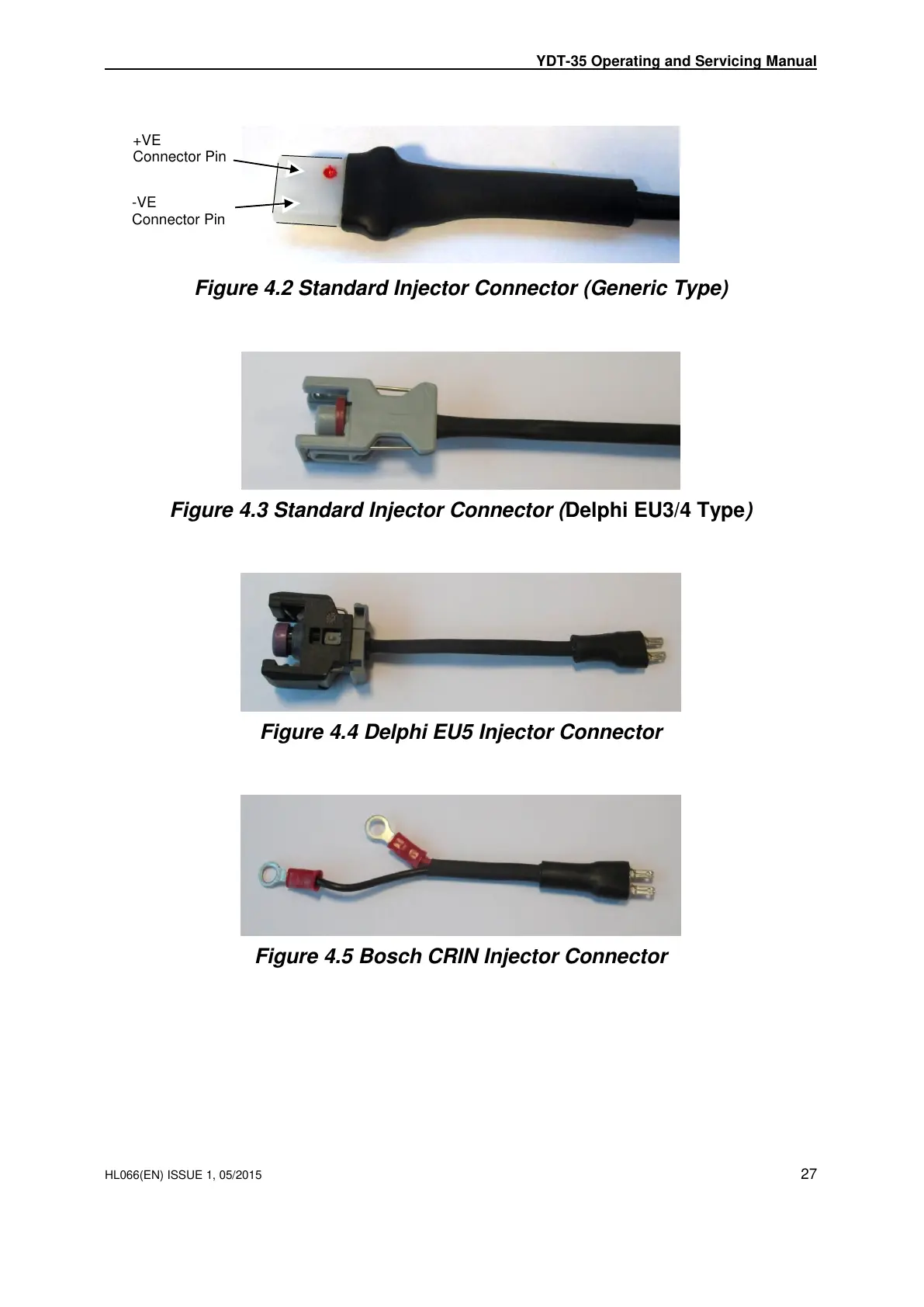

Figure 4.2 Standard Injector Connector (Generic Type)

Figure 4.3 Standard Injector Connector (Delphi EU3/4 Type)

Figure 4.4 Delphi EU5 Injector Connector

Figure 4.5 Bosch CRIN Injector Connector

-VE

Connector Pin

+VE

Connector Pin
