Delphi YDT-35 - Piezo Injector Polarity; Figure 4.6 Bosch Piezo Connector Orientation; Figure 4.7 VDO Piezo Connector Orientation

To Next Page

To Previous Page

YDT-35 Operating and Servicing Manual

28 HL066(EN) ISSUE 1, 05/2015

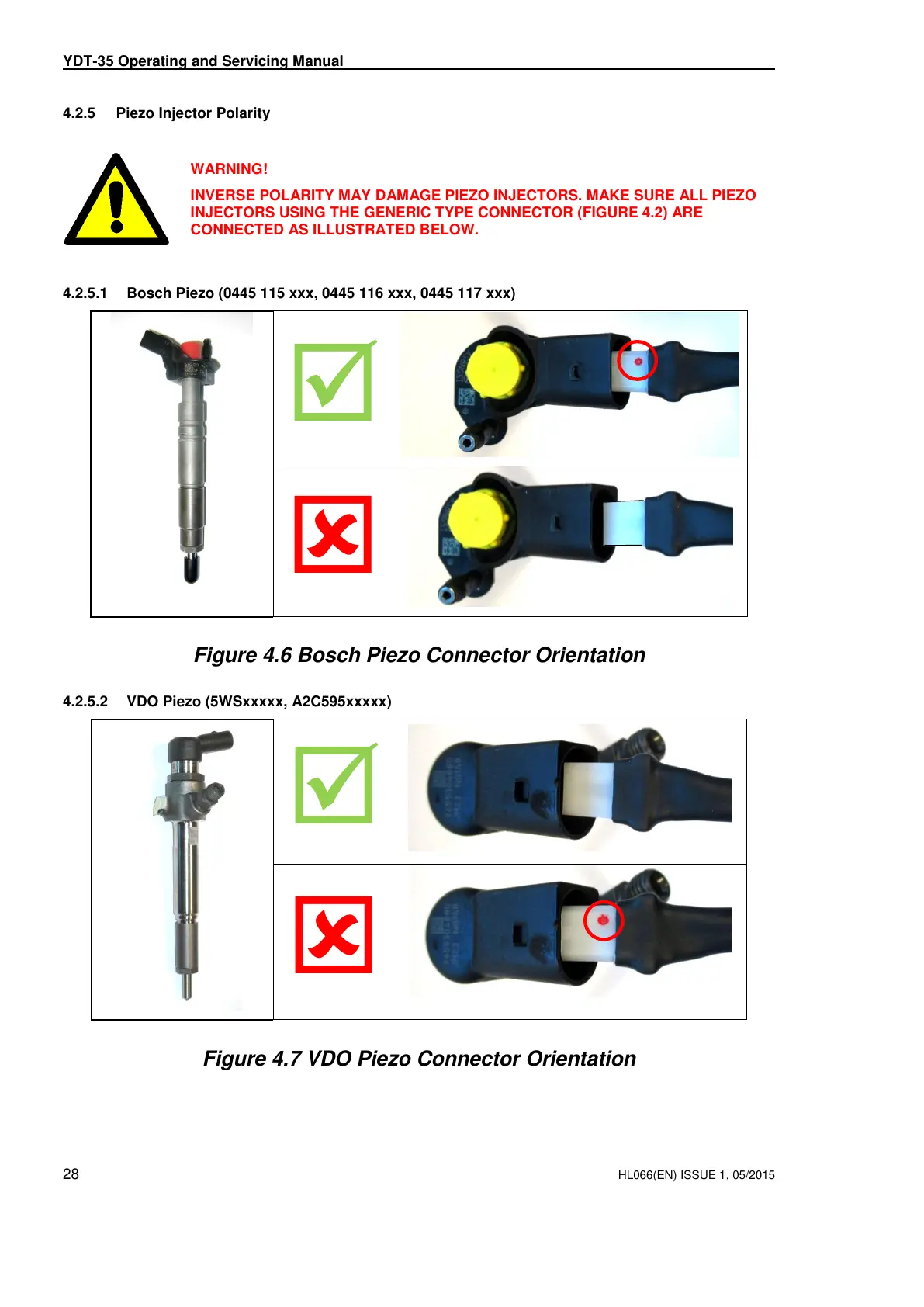

4.2.5 Piezo Injector Polarity

WARNING!

INVERSE POLARITY MAY DAMAGE PIEZO INJECTORS. MAKE SURE ALL PIEZO

INJECTORS USING THE GENERIC TYPE CONNECTOR (FIGURE 4.2) ARE

CONNECTED AS ILLUSTRATED BELOW.

4.2.5.1 Bosch Piezo (0445 115 xxx, 0445 116 xxx, 0445 117 xxx)





Figure 4.6 Bosch Piezo Connector Orientation

4.2.5.2 VDO Piezo (5WSxxxxx, A2C595xxxxx)





Figure 4.7 VDO Piezo Connector Orientation

THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016

Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
