Delphi YDT-35 User Manual

YDT-35 Operating and Servicing Manual
HL066(EN) ISSUE 1, 05/2015 35
Test: .EJBR-######
►
 Ohm/Ind/Cap
 ISF
 RFM

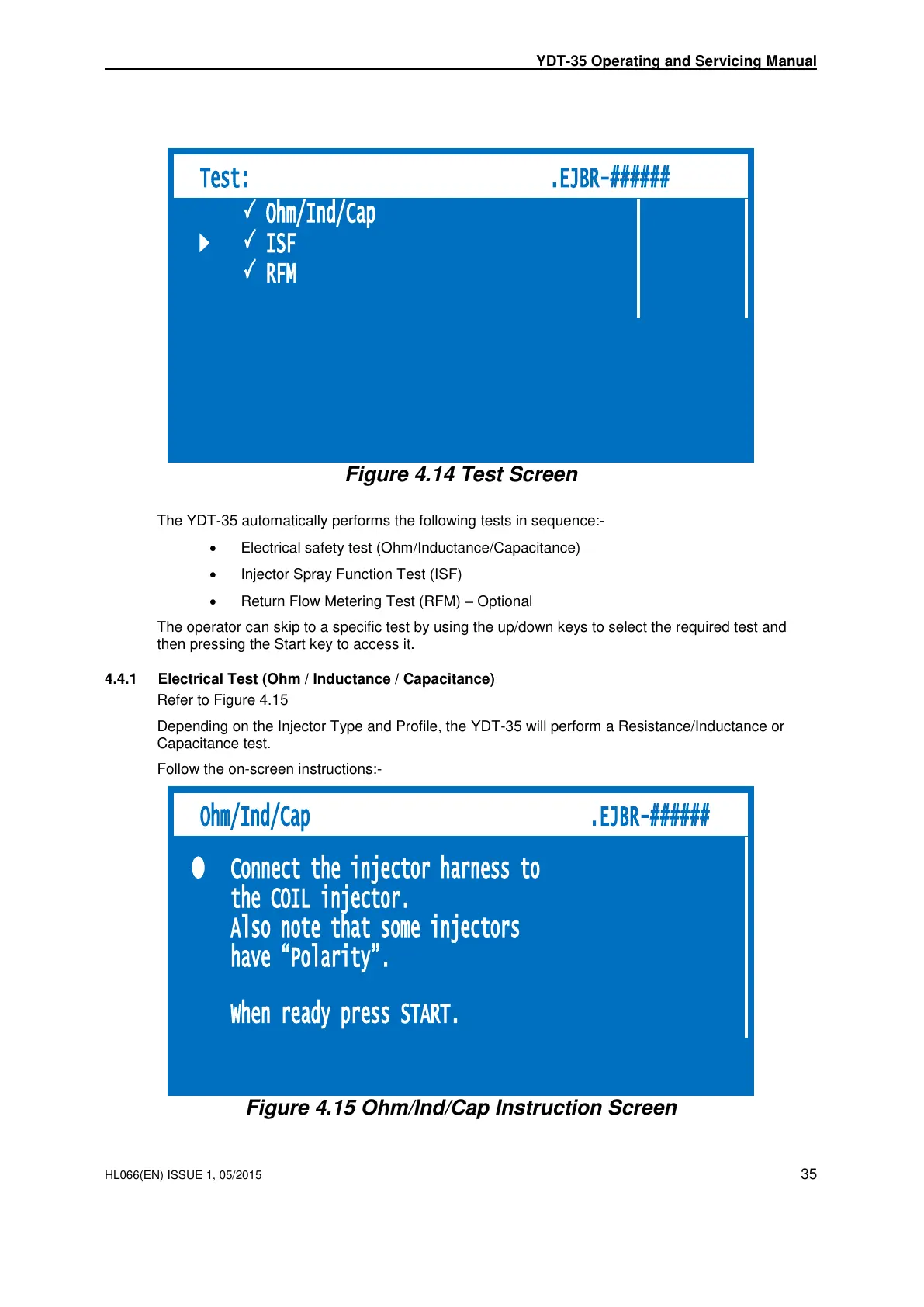

Figure 4.14 Test Screen
The YDT-35 automatically performs the following tests in sequence:-
 Electrical safety test (Ohm/Inductance/Capacitance)
 Injector Spray Function Test (ISF)
 Return Flow Metering Test (RFM) – Optional
The operator can skip to a specific test by using the up/down keys to select the required test and
then pressing the Start key to access it.
4.4.1 Electrical Test (Ohm / Inductance / Capacitance)
Refer to Figure 4.15
Depending on the Injector Type and Profile, the YDT-35 will perform a Resistance/Inductance or
Capacitance test.
Follow the on-screen instructions:-
Ohm/Ind/Cap .EJBR-######

Connect the injector harness to
the COIL injector.
Also note that some injectors
have “Polarity”.
When ready press START.
Figure 4.15 Ohm/Ind/Cap Instruction Screen
THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016
Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
