YDT-35 Operating and Servicing Manual

HL066(EN) ISSUE 1, 05/2015 37

Ohm/Ind/Cap .EJBR-######

00.43

0.2 – 0.6

60 - 110

START=Test, STOP=Next

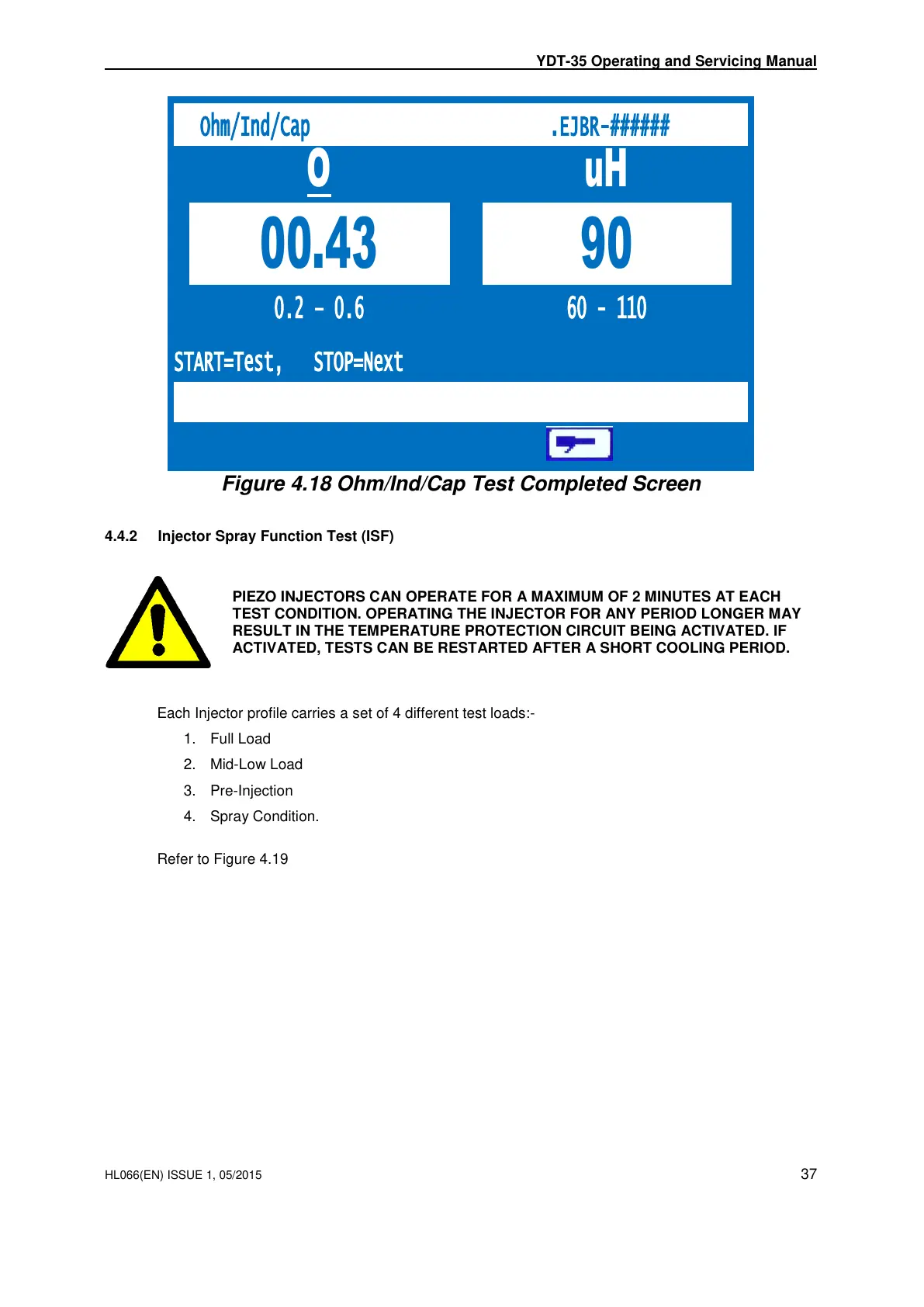

Figure 4.18 Ohm/Ind/Cap Test Completed Screen

4.4.2 Injector Spray Function Test (ISF)

PIEZO INJECTORS CAN OPERATE FOR A MAXIMUM OF 2 MINUTES AT EACH

TEST CONDITION. OPERATING THE INJECTOR FOR ANY PERIOD LONGER MAY

RESULT IN THE TEMPERATURE PROTECTION CIRCUIT BEING ACTIVATED. IF

ACTIVATED, TESTS CAN BE RESTARTED AFTER A SHORT COOLING PERIOD.

Each Injector profile carries a set of 4 different test loads:-

1. Full Load

2. Mid-Low Load

3. Pre-Injection

4. Spray Condition.

Refer to Figure 4.19

THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016

Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
