YDT-35 Operating and Servicing Manual

HL066(EN) ISSUE 1, 05/2015 15

2 Machine Overview

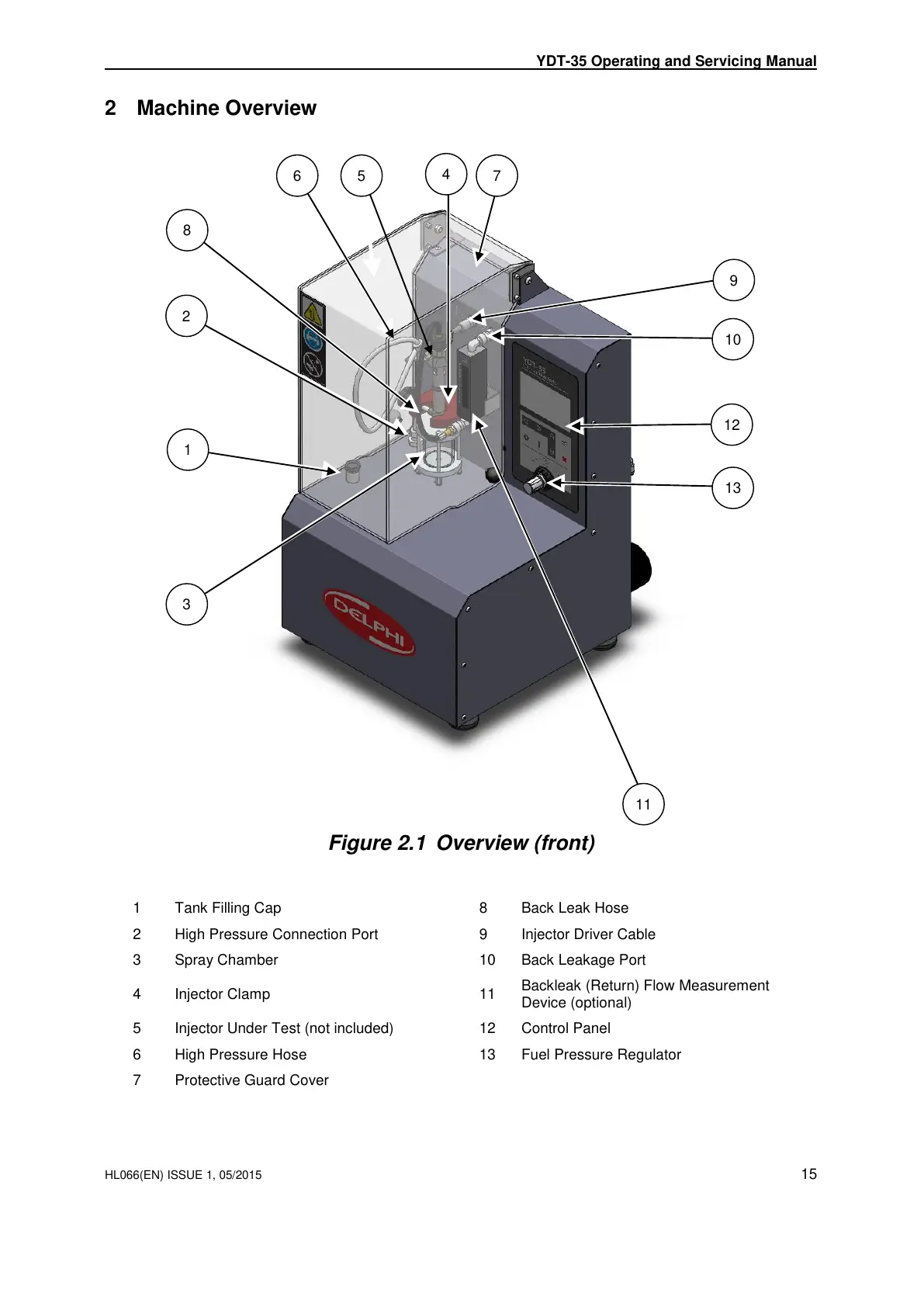

Figure 2.1 Overview (front)

Tank Filling Cap

Back Leak Hose

High Pressure Connection Port

Injector Driver Cable

Spray Chamber

Back Leakage Port

Injector Clamp

Backleak (Return) Flow Measurement

Device (optional)

Injector Under Test (not included)

Control Panel

High Pressure Hose

Fuel Pressure Regulator

Protective Guard Cover

THIS IS AN UNCONTROLLED DOCUMENT downloaded by Lukas Matuska on 16 Feb 2016

Any technical intervention requires certified Hartridge training. Contact Hartridge Ltd for details.
